NEW QUESTION 1
After VTEP devices have established BGP neighbor adjacencies with other VTEPs or with Internal BGP route reflectors, which three pieces of inirmation are exchanged through BGP? (Choose three)

• A. VTEP peer list
• B. router MAC address
• C. VPNv4 prefixes
• D. MD5 Triple Data Encryption Standard (3DES) key
• E. VTEP address
• F. Layer 3 VNI

Answer: BEF

NEW QUESTION 2
Which two benefits do VXLANs offer compared to VLANs? (Choose two)

• A. It provides better utilization of available network paths in the overlay infrastructure B.VXLAN uses a 24-bit VNID to overcome the 4094 VLAN scale limitation
• B. It provides a solution to extend Layer 2 segments over a shared Layer 3 routed network
• C. VXLAN uses a 16-bit VNID to overcome the 4094 VLAN scale limitation
• D. It provides a solution to extend Layer 2 segments over a single Layer 2 VLAN

Answer: BC

NEW QUESTION 3
In an ACI fabric, which three types of interface are supported on border leaf switches to connect to
an external router? (Choose three)

• A. sub interface with 802 1Q tagging
• B. 1GbE Interface
• C. any interfaces that supports VXLAN encapsulation
• D. Layer 3 interface
• E. 10GbE interface
• F. switch virtual interface

Answer: ADF

Explanation: Using More than two Border leaf Switches
Border leaf switches support three types of interfaces to connect to an external router:
• Layer 3 (routed) interface
• Sub interface with IEEE 802.1Q tagging
• Switched Virtual Interface (SVI)

NEW QUESTION 4
How many APICs can you communicate with at one time in a single REST call using Postman?

• A. three
• B. two
• C. one
• D. There is notlimit

Answer: D

NEW QUESTION 5

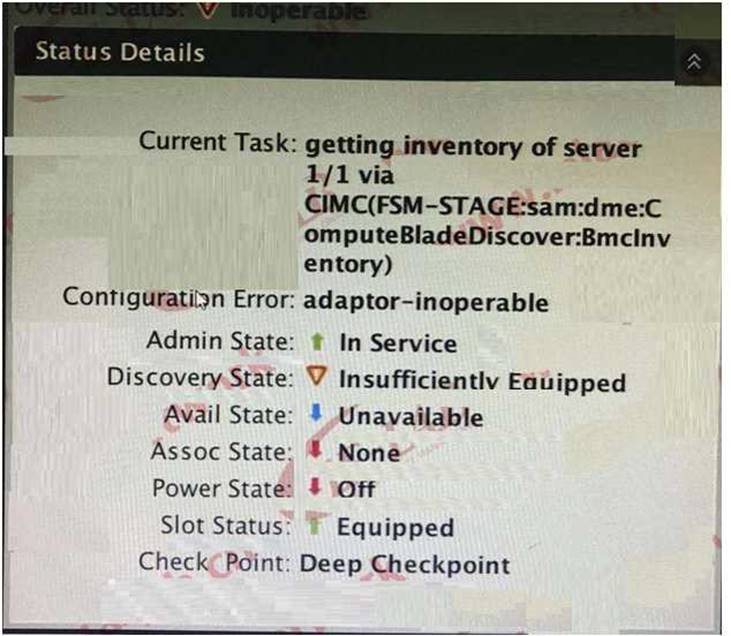

Refer to the exhibit.

After you upgrade Cisco UCS firmware, some of your blades have these error messages. Which description of the problem is true?

• A. Storage provisioning is not configured
• B. Some components are deprecated
• C. vNIC template must be converted to updating
• D. Service profile requires a connectivity policy

Answer: D

NEW QUESTION 6
Which two statements about IP Source Guard are true? (Choose two)

• A. IP Source Guard is independent of DHCP snooping to build and maintain the IP-MAC address binding table
• B. IP Source Guard requires that DHCP snooping is disabled
• C. IP Source Guard limits IP traffic on an interface to only those sources that have an IP-MAC address table entry or static IP source entry
• D. By default, IP Source Guard is enabled on all interfaces
• E. When you first enable IP Source Guard on an interface, you may experience disruption in IP traffic until the hosts on the interface receive a new IP address from a DHCP server

Answer: CE

NEW QUESTION 7
Which three options are valid sources for Cisco UCS monitor sessions? (Choose three)

• A. VLAN
• B. vNIC
• C. vHBA
• D. VSAN
• E. uplink FC interface
• F. pin group

Answer: CDE

NEW QUESTION 8
Which method is the best way to troubleshoot a specific workflow execution in UCSD?

• A. Check the specific SR log.
• B. Generate techsupport and submit it to the TAC workflow analysis tool.
• C. Enable debug log first, the check the infrastructure logs.
• D. Open the infrastructure log.

Answer: A

NEW QUESTION 9
Which statement about IP-directed broadcast is true?

• A. When a directed broadcast packet reaches a switch that is directly connected to its destination subnet, that packet is "exploded" as a broadcast on the destination subnet
• B. All switches in the network forward an IP-directed broadcast in the same way they forward unicast IP packets
• C. An IP-directed broadcast is a packet whose destination address is a multicast group to send the packet to a group of hosts in a local or remote network
• D. All IP-redirected broadcast is an IP packet whose destination address is a valid unicast address, but which originates from a node that is itself part of that destination subnet

Answer: A

NEW QUESTION 10

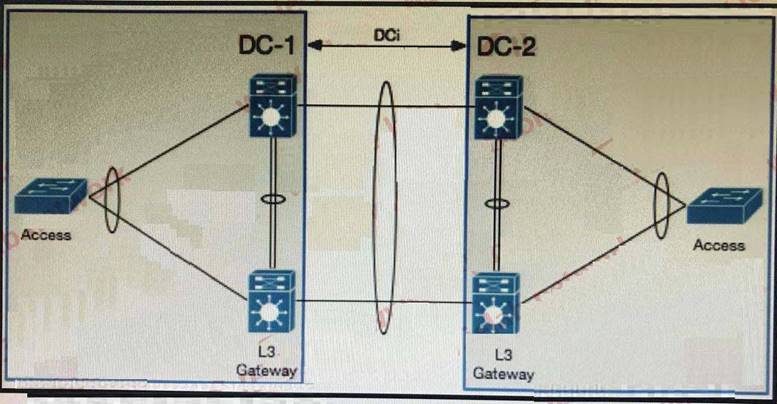

Refer to the exhibit.

Which two options must be configured on the Layer 3 Gateway switches to isolate the HSRP between the two data centers? ( Choose two)

• A. disable HSRP GARP on the SVIs for the VLANs that move across the DCI
• B. routed access control list on the DCI on the SVIs that blocks the HSRP control traffic
• C. port access control list on the DCI port-channel that blocks the HSRP control traffic
• D. VLAN access control list that blocks the HSRP control traffic
• E. ARP inspection filter that blocks the HSRP GARPs

Answer: DE

Explanation: https://www.cisco.com/c/en/us/support/docs/switches/nexus-7000-series-switches/118934-configure-nx7k-00.html#anc12

NEW QUESTION 11
Cisco UCS Director provides a facilitate acquisition of API information and help with API code generation. Which option accesses this feature?

• A. Enable the Developer tools in your web browser
• B. Download the ucsd-rest-api-sdk-x.x.0.0.zip file from the cisco.com software download area or the DevNet site
• C. Access the REST API browser in the cisco UCS Director GUI.
• D. Retrieve the list of acailable services using/app/api/restformattype=json&opName=userAPIGetAllServices&opData=0

Answer: C

NEW QUESTION 12
What is recommended backup policy for Cisco Cloud Center?

• A. Bi-Weekly Basis
• B. Daily Basis
• C. Monthly Basis
• D. Weekly Basis
• E. Hourly Basis

Answer: B

NEW QUESTION 13
You are configuring an L3Out interface for a VRF for which OSPF is configured on an ACI fabric.You notice that the OSPF routing table is rebuilt every 10 seconds. Which reason for this behavior is true?

• A. OSPF timers are set to rebuild the RIB every 10 seconds
• B. The loopback interfaces of the L3Out are configured with an IP addresses that is already in use
• C. Aduplex mismatch is on the link on which L3Out is configured
• D. This is the normal behavior of the ACI fabric

Answer: B

NEW QUESTION 14
Object configJob contains which of the following information?

• A. field lastStepDescr
• B. admin state
• C. next object name
• D. passphrase

Answer: A

Explanation:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/rest_cfg/2_1_x/b_Cisco_APIC_REST_API_Configuration_Guide/b_Cisco_APIC_REST_API_Configura tion_Guide_chapter_010.pdf

NEW QUESTION 15
Which description of how to enable the Flex Flash Controller auto-sync function on the B200M4 blade is true?

• A. Configure a storage policy for FX3S
• B. Configure a storage connection policy to use auto-sync
• C. Configure a local disk policy for FlexFlash
• D. Enable auto-sync in the servers > inventory > storage subtab

Answer: D

Explanation: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Storage-Mgmt/3-1/b_UCSM_GUI_Storage_Management_Guide_3_1/b_UCSM_GUI_Storage_Management_Guide_3_ 1_chapter_01011.pdf

NEW QUESTION 16
Which two statements about FabricPath are true? (Choose two.)

• A. Traffic can only be forwarded from the root switch in First-Hop Redundancy Protocols.
• B. FabricPath interfaces carry only FabricPath-encapsulated traffic.
• C. FabricPath does not require an Enhanced Layer 2 Package license.
• D. STP does run inside a FabricPath network.
• E. The F-Series modules do not support multiple SPAN destination ports of virtual SPAN.

Answer: BE

NEW QUESTION 17

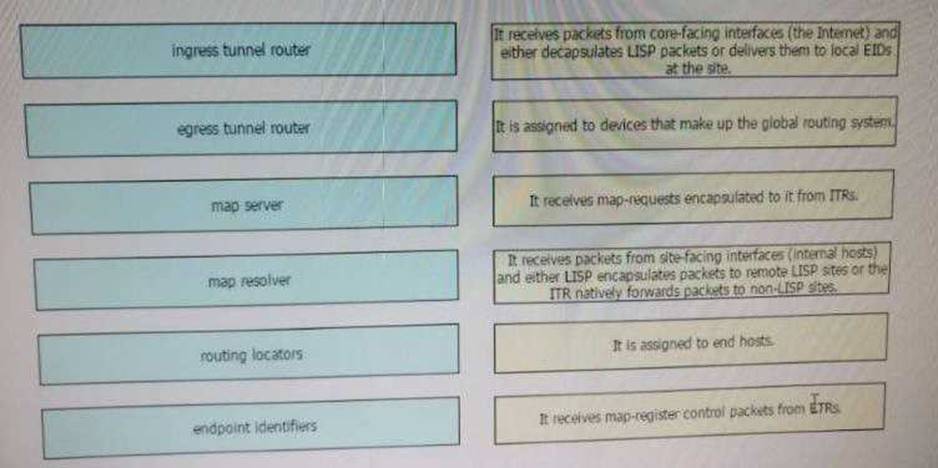

DRAG DROP
Drag and Drop the key components of LISP from left onto the correct definitions on the right

Answer:

Explanation: Ingress tunnel router – it receives packets from site-facing interfaces (internal hosts) and either
LI SP encapsulates packets to remote LISP sites or the ITR natively forwards packets to non LISPsites. Egress tunnel router – It receives packets from core-facing interfaces (the internet) and either decapsulates LISP packets or delivers them to local EIDs at the site Map server – it receives map- register control packets from ETRs.
Map resolver – it receives map-requests encapsulated to it from ITRs.
Routing locators – It is assigned to devices that makeup the global routing system. Endpoint identifiers --- it is assigned to end hosts.
Note: Looks correct, just double check cisco definitions of Ingress/Egress Tunnel routers.

NEW QUESTION 18

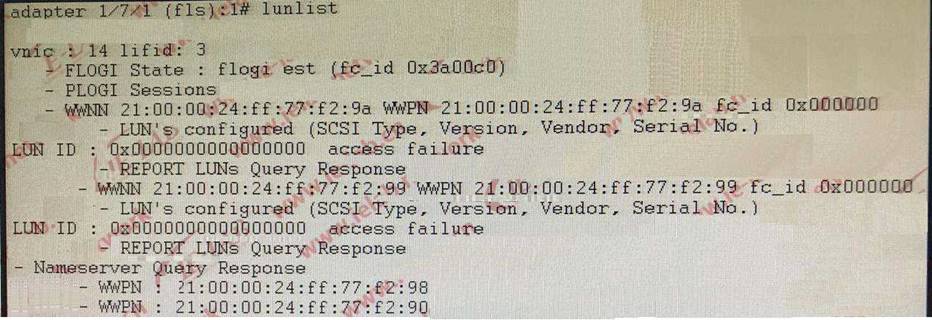

Refer to the exhibit.

This output is observed when troubleshooting a blade that is unable to boot from SAN.Which action must the cisco UCS administrator take to resolve this issue

• A. Check the zoning configuration on the fibre Channel switch
• B. Check the vHBA VSAN configuration in service profile
• C. Check the fatric interconnect storage upink ports
• D. Check the iscsi initiator group pool
• E. Check the LUN masking configuration on the storage array

Answer: A

NEW QUESTION 19
In a multiple vendor environment,which approach is recommended in cisco NX-OS to generate the BGP router distinguisher and router target?

• A. Manually configure router-distinguisher and auto generate rouer-tarfet values
• B. Manually configure router-distinguisher and route-target values
• C. Auto generate route-distinguisher and route-target values
• D. Auto generate route-distinguisher and route-target values and make manual adjustments

Answer: B
