NEW QUESTION 1
A customer requires that the remote site be able to utilize local servers when the AP is in WAN-down (standalone mode). Which AP mode must be configured on the wireless controller?

• A. SE-Connect


• B. Monitor


• C. Local


• D. FlexConnect


• E. Sniffer


• F. Rogue Detector

Answer: D

NEW QUESTION 2
You must use Cisco AVC on a WLC to prevent users from accessing a social media website. Which action do you configure in a rule?

• A. drop


• B. rate-limit


• C. deny


• D. mark

Answer: A

NEW QUESTION 3

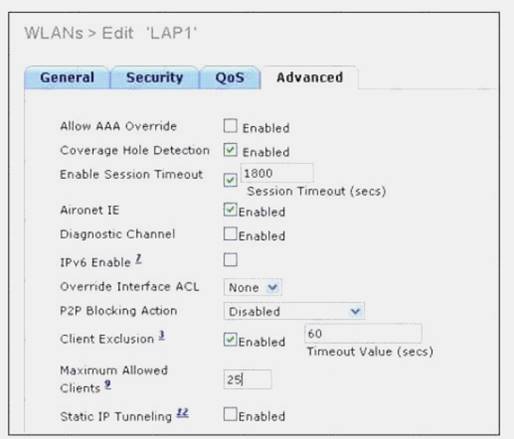

Refer to the exhibit. To which setting is the client limitation for WLAN LAP1 configured?

• A. 60


• B. 1800


• C. Client exclusion is not enabled


• D. 25

Answer: D

NEW QUESTION 4
A wireless engineer at a convention center has been asked to provision an SSID that can accommodate 4,000 users during a conference. Which interface group configuration should be used?

• A. One interface with /20 mask


• B. Two interfaces with /21 mask


• C. Four interfaces with /22 mask


• D. Eight interfaces with /23 mask

Answer: D

NEW QUESTION 5
Which option is a physical entity in converged access wireless network design?

• A. mobility domain


• B. switch peer group


• C. mobility group


• D. mobility agent

Answer: C

NEW QUESTION 6
An engineer wants to configure WebEx to adjust the precedence and override the QoS profile on the WLAN. Which configuration is needed to complete this task?

• A. Change the AVC application WebEx-app-sharing to mark


• B. Create an ACL for WebEx.


• C. Change the WLAN reserved bandwidth for WebEx.


• D. Create an AVC profile for WebEx marked with a lower DSCP value

Answer: A

NEW QUESTION 7
An engineer is attempting to send multicast data to all multicast routers in the network with ID 338789750.
Which IP address should be used?

• A. 224.0.0.1


• B. 224.0.0.2


• C. 224.0.0.4


• D. 224.0.0.3

Answer: B

NEW QUESTION 8
An engineer used an interface group under the SSID configuration, but noticed that a test client is getting an IP assigned in a different VLAN from the DHCP server. Which two options override the interface group configuration on the SSID? (Choose two.)

• A. static VLAN on client


• B. ACL


• C. AP group


• D. static IP on client


• E. MAC filtering


• F. RF group


• G. AAA override

Answer: CG

NEW QUESTION 9
Which two options are limitations of using an AP as a workgroup bridge? (Choose two.)

• A. Only factory-configured MAPs can support WGB mode.


• B. MAPs that are configured in WGB mode do not answer S36 radio measurement requests.


• C. A limited subset of Layer 2 security types are supported for wireless clients of a WGB.


• D. There is a limit of 20 wired client devices.


• E. Multiple VLANs are not supported for wireless client

Answer: BD

NEW QUESTION 10
Branch wireless users report that they can no longer access services from head office but can access services locally at the site. New wireless users can associate to the wireless while the WAN is down. Which three options (Cisco FlexConnect state, operation mode, and authentication method) are seen in this scenario? (Choose three.)

• A. authentication-central/switch-local


• B. standalone mode


• C. authentication-central/switch-central


• D. WPA2 personal


• E. authentication-local/switch-local


• F. WPA2 enterprise

Answer: BDE

NEW QUESTION 11
A customer has implemented several WLANs in an auditorium utilizing a newly dedicated WLC and is experiencing excessive channel utilization regardless of occupancy. Which action reduces channel utilization without removing SSIDs?

• A. Disable MCS data rates 0 through 11.


• B. Disable MCS data rates used by 40 MHz channels.


• C. Disable data rates that use CCK.


• D. Disable VHT data rate

Answer: C

NEW QUESTION 12
When CAPWAP protocol runs over IPv4, which UDP port numbers are used for control and data traffic,
respectively?

• A. control 5246, data – UDP-Lite(IP Protocol 136)


• B. control 5247, data – 5246


• C. control 5246, data – 5247


• D. control 5247, data – UDP-Lite(IP Protocol 136)

Answer: C

NEW QUESTION 13
A customer has implemented a N+1 high availability plan in a multistory building. All APs on odd numbered floors are set as primary to WLC-A and all APs on even numbered floors are set as primary to WLC-8. Which two problems are likely to arise from this design? (Choose two)

• A. inconsistent CleanAir data due to multiple WLCs


• B. floor-to-floor bleed-through that causes intercontroller roaming delays


• C. AVC inconsistency due to multiple mobility group members


• D. legacy device compatibility with multiple WLC configuration that causes disconnects


• E. unpredictable AP loading during a WLC failure

Answer: AC

NEW QUESTION 14
You have a VoWLAN configured for platinum QoS, WMM, and CAC. IP phones for this VoWLAN include the Nokia and Cisco Unified Wireless IP Phones 7920G (pre-v2.0 firmware), 7921G, and 7925G. The Wireless IP Phones 7921G and 7925G work properly, but the Nokia and the Wireless IP Phones 7920G associate with the WLAN but cannot place calls. What is the issue?

• A. The lowest mandatory speed in the WLAN is too high and needs to be reduced.


• B. The Cisco Unified Wireless IP Phones 7920G and Nokia IP phones do not support TSPEC.


• C. EDCA needs to be enabled on the WLAN.


• D. HCCA needs to be enabled on the WLAN.


• E. The reserved roaming bandwidth setting is set too low.


• F. The expedited bandwidth setting needs to be enable

Answer: B

NEW QUESTION 15
Which three fields are required when creating a new NetFlow Exporter? (Choose three.)

• A. IP address


• B. AP group


• C. WLAN ID


• D. port number


• E. SSID


• F. exporter name

Answer: ADF

Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/fnetflow/configuration/15-mt/fnf-15-mtbook/cfgdefnflow- exprts.html

NEW QUESTION 16
A network engineer is designing a high capacity WLAN for a conference are

• A. The enterprise is concerned about non-business traffic consuming excessive bandwidth and impacting performanc


• B. What can be used in the design to allow the controller to block or throttle applications?


• C. AVC


• D. CMX


• E. DSCP


• F. RXSOP

Answer: A

NEW QUESTION 17
An engineer is reducing the subnet size of the corporate WLAN by segmenting the VLAN into smaller subnets.
Clients will be assigned a subnet by location. Which type of groups can the engineer user to map the smaller subnets to the corporate WLAN?

• A. AP groups


• B. RF groups


• C. interface groups


• D. WLC port groups

Answer: C

NEW QUESTION 18
A customer has "quiet" wireless clients that use static IP addresses. Which two WLAN configurations are required for these wireless clients to connect properly? (Choose two.)

• A. Disable DHCP address assignment required.


• B. Enable passive client.


• C. Disable allow AAA override.


• D. Enable static IP tunneling.


• E. Disable DHCP server overrid

Answer: AE

NEW QUESTION 19
SIMULATION
Scenario:

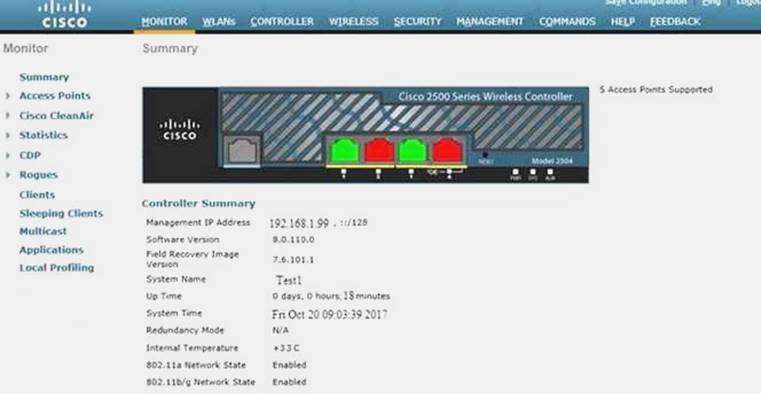

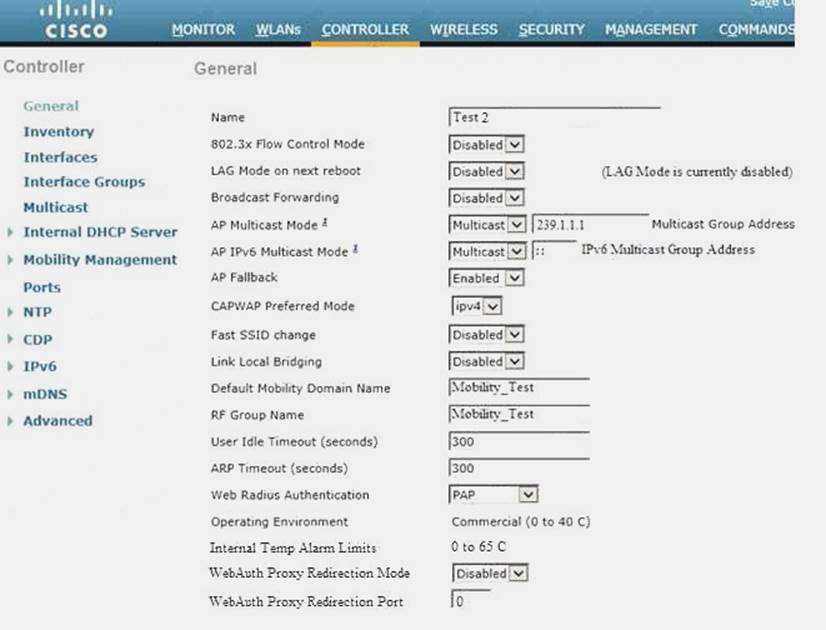

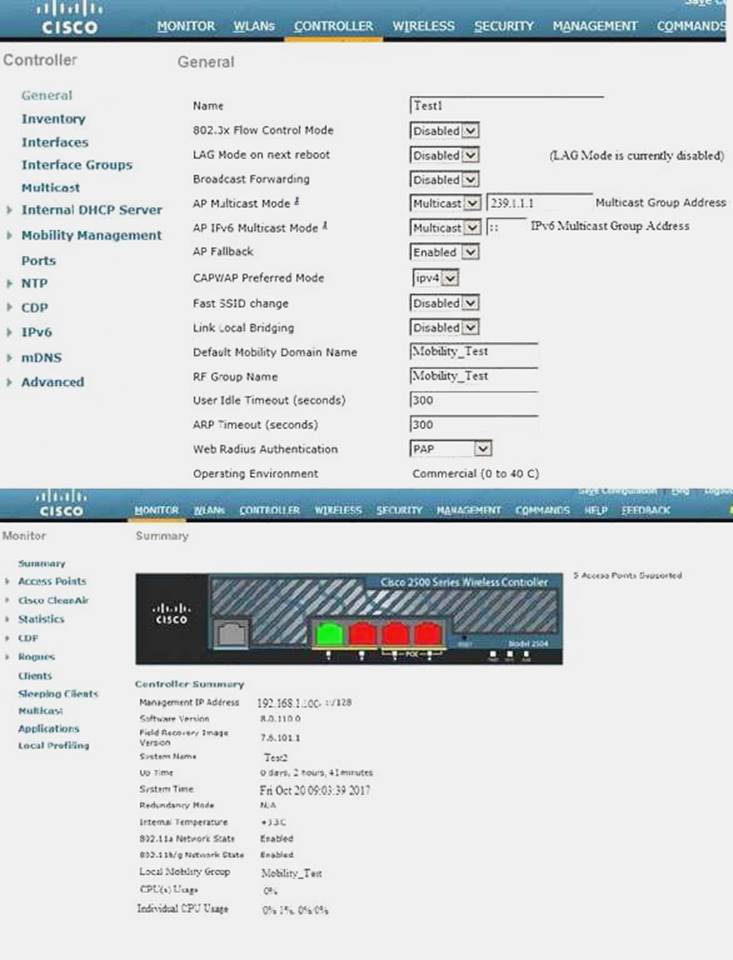

You have been tasked with setting up a mobility group (Mobility_Test) in a test lab. There are two WLCs that you will need to configure (Test1 and Test2). Use the Administrative Workstation to acces the Test1 and Test2 WLCs. Once configured you will need to verify that the mobility group peers are communicating properly.
Mobility Group Name: Mobility_Test Mobility Group Members: Test1
IP Address: 192.168.1.99
MAC Address: b0:fa:eb:8c:2b:a0 Mobility Group Members: Test2 Ip Address 192.168.1.100
MAC Address: d0:c2:82:e3:aa:20
You have configured mobility group properly when the status of the mobility group peers is UP. TOPOLOGY

VIRTUAL TERMINAL

• A. Mastered


• B. Not Mastered

Answer: A

Explanation:
Mobility Controllers belong to only one group, and can know several mobility groups On Test 1 WLC
1. Choose Controller> Mobility Management > Mobility Peer
2. Click New
3. Enter the following details of Test 2:
a) Mobility Member IP
b) Mobility Member Public IP
c) Mobility Member Group Name
d) Multicast IP Address
4. Apply and Save
Similarly log in to Test 2 and enter details of Test1

NEW QUESTION 20
A network engineer for a college dormitory notices that student devices are filling up the SP-DB and are not allowing the shared wireless printers to be discovered. Which feature can be used to reserve space in the SP-DB for the printers?

• A. mDNS-AP


• B. LSS


• C. Priority MAC


• D. sso

Answer: C

NEW QUESTION 21
A customer requires wireless traffic from the branch to be routed through the firewall at corporate headquarters. There is a RADIUS server in each branch location. Which FlexConnect state should be
used in this scenario?

• A. local authentication and local switching


• B. local authentication and central switching


• C. central authentication and central switching


• D. central authentication and local switching

Answer: C

NEW QUESTION 22
A wireless engineer must design a wireless mesh network for the courtyard at a local university to support a large number of students. Which description of how the engineer designs the mesh network to provide additional capacity is true?

• A. Configure multiple RAPs to support bridge mode.


• B. Configure multiple RAPs on different channels.


• C. Configure multiple RAPs to support hardware diversity.


• D. Configure multiple RAPs with different antenna

Answer: C

NEW QUESTION 23
Which show command will show whether a WLAN is locally or centrally switched on a Cisco Wireless Lan Controller?

• A. show ap config general Cisco_AP


• B. show wlan wlan_id


• C. show filexconnect summary


• D. show filexconnect group detail

Answer: B

NEW QUESTION 24
An engineer wants to identify historical data collected by the Cisco MSE on rogue access points over the past two years. If the Cisco MSE is configured for maximum historical data retention, how many months can be searched?

• A. 24


• B. 36


• C. 6


• D. 12

Answer: D

NEW QUESTION 25
Which network is connected by default when connecting to the unused Ethernet port of a MAP?

• A. the native VLAN that the MAP is connected to


• B. the VLAN that is associated with WLAN number 1 in the WLC


• C. the native VLAN that the WLC is connected to


• D. the VLAN that is associated with the SSID that the MAPs are communicating on

Answer: A
