NEW QUESTION 1

You are configuring the Call Control Discovery feature. You need to configure Hosted DN Group Configuration settings. What is the range of values that you can define in the PSTN Failover Strip Digits field?

• A. 0-10
• B. 0-12
• C. 0-14
• D. 0-16
• E. 0-18
• F. 0-20

Answer: D

NEW QUESTION 2

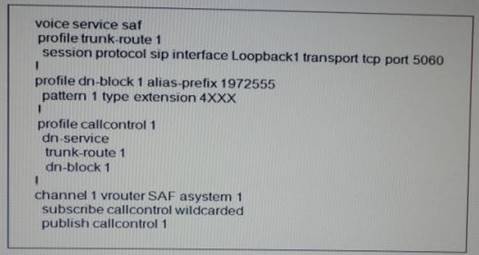

Refer to the exhibit.

When a Cisco Unified Communications Manager Express advertises the directory number pattern in the
exhibit, what would the learned pattern be in the RTMT tool on the Cisco Unified Communications Manager?

• A. 4XXX and the ToDID will be 0:+1972555
• B. 4XXX and the ToDID will be 0:+19725554XXX
• C. 4XXX and the ToDID will be 0:19725554XXX
• D. 4XXX and the ToDID will be 0:1972555
• E. 19725554XXX and the ToDID will be 0:+1972555

Answer: D

Explanation:
The answer is 4XXX and the ToDID will be 0:1972555.
Exhibit explain profile dn-block1 alias-prefix 1972555 and pattern 1 type extension 4xxx.

NEW QUESTION 3

Users report intermittent call failures. All calls must invoke an IOS-based transcoder, registered to Cisco Unified Communications Manager, to be successful. Which two commands can be used to rule out issues with the transcoder? (Choose two.)

• A. debug voip ccapi inout
• B. debug ccsip message
• C. show dspfarm profile
• D. show version
• E. debug sccp messages

Answer: AB

NEW QUESTION 4

When you we dialing from an internally registered device on Cisco VCS, m which order are the options processed lo determine the call routing?

• A. CPL, Transforms, FindMe, Search Rules
• B. CPL, FindMe, Transforms, Search Rules
• C. Transforms, CPL, FindMe, Search Rules
• D. Search Rules, Transforms, CPL, FindMe
• E. FindMe, CPL, Transforms, Search Rules

Answer: C

NEW QUESTION 5

An engineer is investigating voice quality degradation on calls passing through a particular SIP gateway. To gather the necessary information, sample traffic captures are taken. Which information in the capture reveals the problem?

• A. destination port
• B. version
• C. ToS bits
• D. MTU

Answer: B

Explanation:

Reference:
https://community.cisco.com/t5/collaboration-voice-and-video/how-to-troubleshoot-voice-qualityissues-
in-a-ucm-environment/ta-p/3121613

NEW QUESTION 6

You have sites across a WAN and because of a recent change on the access control lists, your SIP phones are having registration issues.
Which cause is likely?

• A. TCP/UDP 0506 is blocked by the ACL.
• B. TCP/UDP 5006 is blocked by the ACL.
• C. TCP/UDP 5060 is blocked by the ACL.
• D. TCP/UDP 6050 is blocked by the ACL.

Answer: C

NEW QUESTION 7

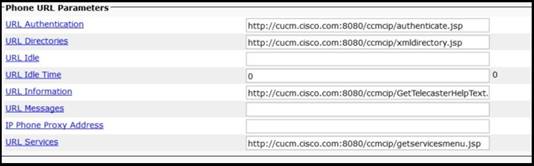

Refer to the exhibit.

A new phone was installed and currently has issues registering with Cisco Unified Communications Manager. The phone received its IP address via DHCP, with options 3 and 150.
Which two actions woulDEnable the phone to download its configuration automatically? (Choose two.)

• A. Change the phone URL parameters to IP addresses.
• B. Provide DHCP option 6 to the phone via DHCP.
• C. Reboot the phone.
• D. Change the VLAN that the phone is assigned to.
• E. Manually assign the phone settings.
• F. Provide DHCP option 15 to the phone via DHCP.

Answer: AB

NEW QUESTION 8

Which two Cisco Unified Communications Manager operations will test reverse DNS lookup? (Choose two.)

• A. Installation
• B. Reboot
• C. Upgrade
• D. Switch version
• E. Changing IP address or hostname

Answer: AE

NEW QUESTION 9

Cisco Unified Mobile Connect has been enabled, but users are not able to switch an in-progress call from their mobile phone to their desk phone. You find out that the Resume softkey option does not appear on the desk phone after users hang up the call on their mobile phone. What do you do to resolve this issue?

• A. Issue the progress_ind progress disable command in the gateway.
• B. Issue the voice call disc-pi-off command in the gateway.
• C. Enable mobile connect on the user profile.
• D. Assign Resume softkey on the desk phone.

Answer: B

NEW QUESTION 10

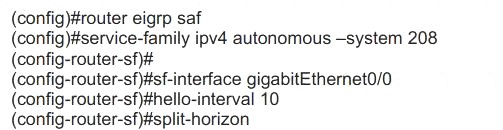

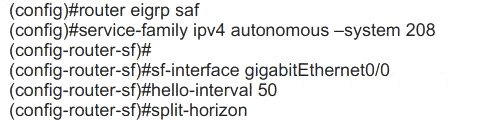

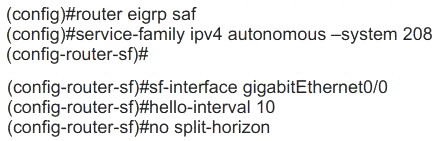

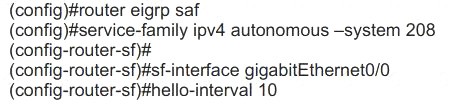

Which set ensures that all SAF clients receive all service advertisements?
A)

B)

C)

D)

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: C

NEW QUESTION 11

You enabled Cisco Unified Mobile Connect for a user, but the user is unable to send calls to a mobile phone from the desk phone. What do you do to resolve the issue?

• A. Restart the phone, and verify that the key is present.
• B. Under User Management > User, make sure that the Mobility option is selected.
• C. Make sure that the phone is subscribed to Extension Mobility.
• D. Add the mobility key to the softkey template that the phone is currently using.

Answer: D

NEW QUESTION 12

Which command is used to check if an MGCP gateway is currently registered with Cisco CallManager?

• A. Router# show ccm-manager gateway
• B. Router# show mgcp ccm-manager
• C. Router# show ccm-manager
• D. Router# show ccm manager

Answer: C

NEW QUESTION 13

An inbound call from the PSTN is not reaching the directory number that it is calling. When the PSTN phone calls the correct DID, only a dial tone is heard. Which command resolves this issue?

• A. (config-dial-peer)#direct-inward-dial
• B. (config-controller)# no provide-outside-dialtone
• C. (config-if)#no dial-tone
• D. (config-dial-peer)# no dial-tone
• E. (config-if)#direct-inward-dial
• F. (config) allow inbound dial-peer 1

Answer: A

NEW QUESTION 14

After you deploy a new Cisco Collaboration solution, users report echoes and choppy voice quality. Which two actions correct the problem? (Choose two.)

• A. Upgrade the Cisco IOS version anDFlash memory on the Cisco IOS router.
• B. Deploy additional hardware resources
• C. Deploy an echo canceller.
• D. Upgrade Cisco Unified Communications Manager.
• E. Enable QoS on the network.

Answer: CE

NEW QUESTION 15

Which configuration is required on Cisco TelePresence Server, in order to support 1080p resolution?

• A. Screen licenses must be configured.
• B. Cisco TelePresence Server must be in remotely managed mode.
• C. Cisco TelePresence Server must be in HD mode.
• D. Cisco TelePresence Server must be configured with Cisco TelePresence Conductor.
• E. Cisco TelePresence Server must be in Full HD mode.

Answer: E

NEW QUESTION 16

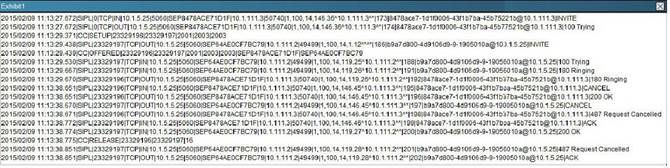

Refer to Exhibit:

What type of trace file is this considered to be?

• A. sdl
• B. dbl
• C. dbnotify
• D. calllogs
• E. sdi

Answer: E

NEW QUESTION 17

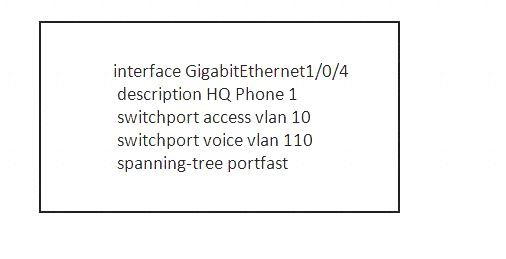

Refer to the exhibit.

An IP phone that is connected through a Cisco Catalyst 3750 Series Switch is failing to register with Cisco Unified Communications Manager. When the user presses the settings button on the phone, the Operational VLAN ID shows ABlank entry. What is the most likely cause for this issue?

• A. The switch may not be supplying inline power.
• B. The spanning tree portfast command needs to be removed.
• C. The trunk encapsulation is missin
• D. The trunk must be configureDFor dot1.Q.
• E. Cisco Discovery Protocol is disabled on the switch.
• F. The Operational VLAN ID of the phone always shows as blan
• G. The Admi
• H. VLAN ID should be 110.

Answer: D

NEW QUESTION 18

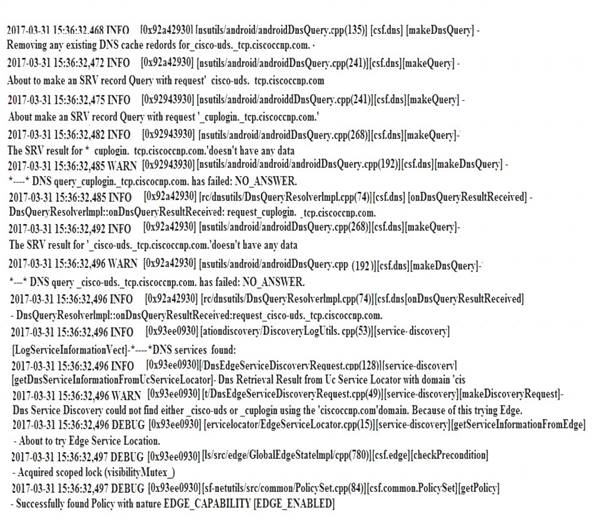

Refer to the exhibit. a Cisco Jabber user moveDFrom the office. Which description of the issue with the endpoint registration is true?

• A. The Android device does not have access to the Internet.
• B. The ISP is preventing Jabber from performing SRV lookups.
• C. The Jabber user is within the enterprise.
• D. The IOS device does not have a valid IP address.

Answer: A

NEW QUESTION 19

In an MCU call with three Cisco TelePresence MX800 systems and a mobile phone calling in, the three TelePresence MX800 systems suddenly experience low audio levels, but the mobile phone audio levels are
correct. What can you do to correct this issue?

• A. Turn off the audio processors on the TelePresence MX800.
• B. Use the mobile phone audio option on the TelePresence MX800 to adjust the mobile phone levels.
• C. Mobile phone audio levels can vary, so you cannot correct the issue.
• D. Turn on AGC on the MCU to adjust the audio levels.
• E. Turn on ALG on the MCU to adjust the audio levels.
• F. Turn on the Auto Adjust levels under "Settings > Audio" on the MCU.

Answer: D

NEW QUESTION 20

How does an IP Phone react upon initialization, if there is no CTL and ITL files present on the device?

• A. The phone downloads only the files that are signed to that device.
• B. The phone blindly trusts the next series of downloadeDFiles.
• C. The file matches the signature against the files on TFTP.
• D. The phone displays the message, Unprovisioned.

Answer: D

NEW QUESTION 21

When identifying Cisco TelePresence Endpoint traffic characteristics, which three statements are true? (Choose three.)

• A. Latency, jitter, and loss are measured in a round-trip fashion.
• B. Latency, jitter, and loss are measured unidirectionally.
• C. Latency and loss are measured at a packet level, based on RTP header sequence numbers and time stamps.
• D. Latency and jitter are measured at a packet level, based on RTP header sequence numbers and time stamps.
• E. Jitter is measured at a video frame level, by measuring the arrival time of the video frame versus the expected arrival time.
• F. Jitter is measured at a packet level, by measuring the arrival time of the packet versus the expected arrival time.

Answer: BCE

NEW QUESTION 22

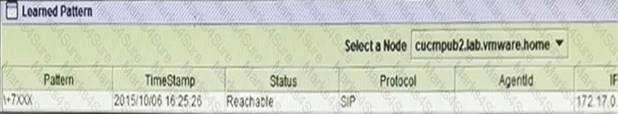

Refer to the exhibit.

An engineer configured CCD between a Cisco Unified Communications Manager (CUCM) cluster and Cisco Unified Communications Manager Express (CME). When the CUCM agents try to dial ACME extension on the range 7XXX, they receive ABusy signal as soon as the 7 is dialed. What can be done to resolve this issue?

• A. Set the CUCM CCD Requesting Service PSTN prefix to 9 instead of+
• B. Set the CME profile dn-block type to extension instead of global
• C. Set the CUCM Hosted DN Pattern PSTN Failover Strip Digits field to 1 instead of 0
• D. Set the CME subscribe callcontrol to instance instead of wildcarded

Answer: A

NEW QUESTION 23

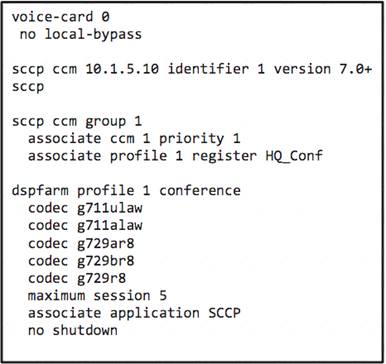

Refer to the exhibit.

You're tasked with staging configuration changes to add conference bridge functionality to an existing IOS voice gateway deployment. What command is missing for the configuration to be accepted by the IOS CLI?

• A. The command maximum conference-participants must be configured under the dspfarm profile.
• B. The Enhanced IOS Conference Bridge is not configured in Cisco Unified Communications Manager.
• C. The command dsp services dspfarm must be configured under the voice-card configuration.
• D. The dspfarm command under the voice card is missing.
• E. The dsp tdm pooling command under the voice-card is missing.

Answer: C

NEW QUESTION 24

Which command do you use to confirm that a router interlace is enableDFor SAP?

• A. show eigrp service-family ipv4 client details.
• B. show ip interface details
• C. show ip saf-service-family interface
• D. show run
• E. show eigrp service -family interface
• F. show eigrp service-family lpv4 <AS number interfaces

Answer: E

NEW QUESTION 25

URI dialing is enabled between two clusters with the default options. The engineer that set up the URI dialing verified that all was working properly. However, a user from one of the clusters cannot dial using URI to a user in the same cluster. What do you do to resolve this issue?

• A. Verify the password that is used by the authentication under Intercluster Lookup Service configuration.
• B. Find out if the URI address of the called user has ACapital letter in the URI string.
• C. Verify that Intercluster Lookup Service is set up correctly.
• D. Verify USN Data Synchronization Status.

Answer: B

NEW QUESTION 26

You configured a Cisco ISR G2 as a SIP gateway, but the gateway does not show that it is registered with Cisco Unified Communications Manager. What is causing this issue?

• A. Cisco Unified Communications Manager does not support SIP gateways.
• B. The gateway does not have the UC license installed.
• C. The gateway does not have Cisco Unified Border Element session licensing.
• D. Cisco Unified Communications Manager does not show a SIP gateway as registered if it is not properly configured.
• E. Cisco Unified Communications Manager never shows a SIP gateway as registereDEven when it is properly configured.
• F. The Cisco ISR G2 cannot be a SIP gateway.

Answer: E

NEW QUESTION 27

An engineer is troubleshooting an intersite call between two endpoints where calls are intermediately failing with the error message: “488 Not Acceptable Media”. Which option causes this error message to trigger?

• A. The device pool contains more call processing agents in the CMG group than the endpoint can support.
• B. MRGL contains more media groups than the endpoint can support.
• C. A lower bandwidth is set in the location than the endpoint can support.
• D. The hunt group contains more devices than the endpoint can support.

Answer: C

NEW QUESTION 28

When a user attempts to log out from Cisco Extension Mobility service by pressing the services button and selecting the Cisco Extension Mobility service, the user is not able to log out. What is causing this issue?

• A. The Cisco Extension Mobility service has not been configured on the phone.
• B. The user device profile is not subscribed to the Cisco Extension Mobility service.
• C. The CTI service is not running.
• D. The logout URL that is defineDFor the Cisco Extension Mobility service is incorrect or does not exist under the IP Phone Services configuration.

Answer: B

NEW QUESTION 29

An engineer is troubleshooting an existing dial plan anDEncounters the dial pattern: 12[0-5]X Which directory numbers are matched by this pattern?

• A. 120 through 125
• B. 1200 through 1250
• C. 1200 through 1259
• D. all numbers starting with 12

Answer: A

NEW QUESTION 30

You need to collect debug Information in a production environment on urgent basis to troubleshoot a problem. Which two commands are recommended by Cisco that you should run?
(Choose two.)

• A. no debug all
• B. undebug all
• C. no logging console
• D. logging buffered
• E. show debug
• F. show logging info

Answer: CD
