NEW QUESTION 1
An engineer the UCS Fabric interconnects for network connectivity to the data center LAN and SAN.
Which two ports types need to be configured to allow traffic to Bow properly? (Choose two)

• A. Ethernet uplink
• B. server uplink
• C. appliance
• D. Fibre Channel uplink
• E. Fibre Channel storage

Answer: AD

Explanation:
Cisco UCS Fabric Interconnects provide these port types:
Server Ports—Server Ports handle data traffic between the Fabric Interconnect and the adapter cards on the servers.
You can only configure Server Ports on the fixed port module. Expansion modules do not support Server Ports.
Uplink Ethernet Ports—Uplink Ethernet Ports connect to external LAN Switches. Network bound Ethernet traffic is pinned to one of these ports.
You can configure Uplink Ethernet Ports on either the fixed module or an expansion module.
Uplink Fibre Channel Ports—Uplink Fibre Channel Ports connect to external SAN Switches. Network bound Fibre Channel traffic is pinned to one of these ports.
Reference: http://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs-6120xp-20- port-fabric-interconnect/110267-ucs-uplink-ethernet-connection.html

NEW QUESTION 2
What is another term for data plane?

• A. signaling plane
• B. control plane
• C. forwarding plane
• D. management plane

Answer: C

NEW QUESTION 3
What are three components of a Cisco UCS blade server system? (Choose three.)

• A. Cisco UCS B-Series chassis
• B. Cisco UCS C-Series server
• C. Cisco UCS B-Series server
• D. Cisco Nexus 5548UP Switch
• E. Cisco UCS Fabric Interconnect
• F. Cisco UCS C-Series chassis

Answer: ACE

NEW QUESTION 4
A network engineer configures FEX0101 on a Cisco Nexus 5596UP switch. Based on the output below, which interface is valid on the FEX?
switch# show fex 101
FEX: 101 Description: FEX0101 state: Online
FEX version: 7.2(1)N1(1) [Switch version: 7.2(1)N1(1)]
Extender Model: N2K-C2248 TP-1GE, Extender Serial: JAF 123456789 Part No: 73-12748-01
pinning-mode: static Max-links: 1 Fabric port for control traffic: Eth1/47 Fabric interface state:
Po147 – Interface Up. State: Active Eth 1/47 – Interface Up. State: Active Eth1/48 – Interface Up. State: Active

• A. Ethernet 1/46
• B. FC 101/1/2
• C. Ethernet 1/48
• D. Ethernet 101/1/1

Answer: C

NEW QUESTION 5
Which plane does a router use to exchange topology information to build a routing table?

• A. back plane
• B. data plane
• C. control plane
• D. management plane

Answer: C

NEW QUESTION 6
You create a workflow lo deploy a service profile to a blade server. After you execute the workflow,
you notice that the resulting service request is in a blocked state What could cause the issue?

• A. The request is waiting for approval
• B. The request is waiting to be executed at a later time
• C. A task fails to execute correctly.
• D. The task library required by the workflow is unavailable

Answer: A

NEW QUESTION 7
Which port is used for an interswitch connection between switches in a multihop FCoE scenario?

• A. NPort
• B. VFPort
• C. VN Pott
• D. VEPort

Answer: D

NEW QUESTION 8
Which two options are control plan protocols? (Choose two)

• A. BGP
• B. ARP
• C. NAT
• D. SMTP
• E. CoPP

Answer: AB

Explanation:
The control plane: The control plane is the brain of the router. It consists of dynamic IP routing protocols (that is OSPF, IS-IS, BGP, and so on), the RIB, routing updates, in addition to other protocols such as PIM, IGMP, ICMP, ARP, BFD, LACP, and so on. In short, the control plane is responsible for maintaining sessions and exchanging protocol information with other router or network devices.
Reference: http://www.ciscopress.com/articles/article.asp?p=2272154&seqNum=3

NEW QUESTION 9
Which statement accurately describes Cisco ACI endpoint policy control?

• A. consists of these two independent elements Cisco AHIC repository and Cisco ACI management consists
• B. of these two logically coupled elements policy repository and endpoint registry
• C. consists of these two logically coupled elements Cisco APIC repository and Cisco AC I management
• D. consists of these two independent elements policy repository and endpoint registry

Answer: B

NEW QUESTION 10
Which two chassis discovery policy settings allow far a UCS chassis to be connected to a pair of Fabric
Interconnect using only two physical connections' (Choose two)

• A. 4-link
• B. 2-link
• C. 8-link
• D. 1-link
• E. Platform-max

Answer: BD

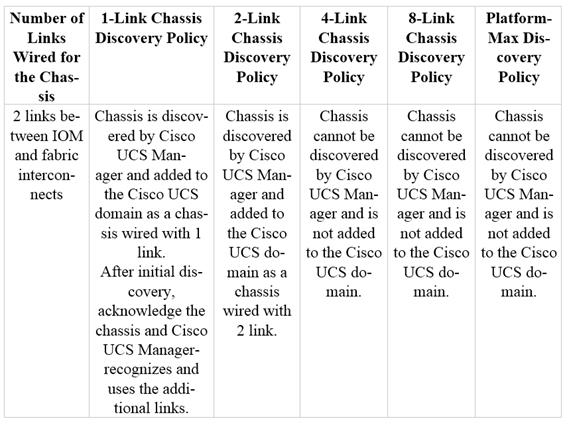

Explanation:

Reference: http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configuration_Guide_2_0/b_UCSM_GUI_Configuration_Guide_2_0_chapter_0110 0.html

NEW QUESTION 11
Which tool organizes workflows to automate simple and complex actions on infrastructure?

• A. Cisco UCS Manager
• B. Cisco UCS Director
• C. Cisco DCNM
• D. Cisco UCS server

Answer: B

Explanation:
You can build Cisco UCS Director workflows to automate simple or complex provisioning and configuration processes.
Reference: https://www1.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-director/HP-OA-Mgt-Guide/6-0/b_Cisco_UCS_Director_HP_OA_Management_Guide_60/b_Cisco_UCS_Director_HP_OA_Management_Guide_60_chapter_010.html

NEW QUESTION 12
Which two are benefits of Cisco Unified Fabric? (Choose two )

• A. SNMPv3 strong authentication
• B. reduced cabling
• C. zone port distribution
• D. consolidation of LAN and SAN over a common transport
• E. native AES-256 encryption of data in flight

Answer: BD

NEW QUESTION 13
Which two adapters far Cisco UCS B-Series blade servers and C-Series rack servers allow configuration of virtual interfaces? (Choose two.)

• A. M81-KR
• B. P71E
• C. VIC-1225
• D. P81E
• E. VIC-1280

Answer: AE

NEW QUESTION 14
What are two functions of a Cisco UCS Fabric Interconnect in a Cisco UCS domain? (Choose two.)

• A. management
• B. comprehensive network analysis
• C. network connectivity
• D. traffic load balancing
• E. core fibre channel switching platform

Answer: AC

NEW QUESTION 15

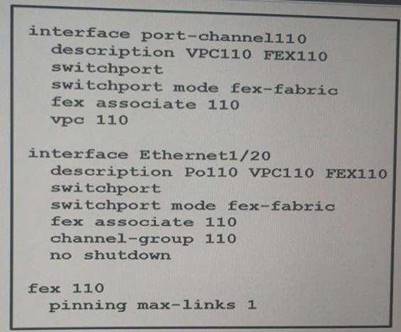

Refer to the exhibit

Which statement about the configuration is true?

• A. The FEX has two uplinks to a single core switch.
• B. Link down messages from the FEX are delayed.
• C. The FEX is attached to two parent switches.
• D. At least two uplinks to the FEX must be active for the FEX to come online.

Answer: D

NEW QUESTION 16
Which two Cisco data center devices can participate in Fabric Path? (Choose two.)

• A. Cisco MOS 9500 Series directors
• B. Cisco Nexus 7000 Series Switches
• C. Cisco Nexus 5500 Series Switches
• D. Cisco Nexus 1000V
• E. Cisco Nexus 4900 Series Switches

Answer: BC

NEW QUESTION 17
Which three items in Cisco Unified Computing System are subject to finite state machine validation?
(Choose three.)

• A. SNMP get
• B. local login
• C. server discovery
• D. firmware downloads
• E. server boot
• F. backup jobs

Answer: CDF

NEW QUESTION 18
A network architecture team is looking for a technology on Cisco Nexus switches that significantly simplifies extending Layer 2 applications across distributed data centers. The team wants the Cisco Data Center Interconnect between sites and without changing or reconfiguring the existing network design. Which technology should be used?

• A. Multiprotocol Label Switching
• B. Cisco FabricPath
• C. virtual switching system
• D. virtual port channel
• E. Overlay Transport Virtualization

Answer: E

NEW QUESTION 19
Which description of the purpose of an API is true?

• A. provides a secure platform to authenticate internal users
• B. assists developers to understand the underlying code of an application
• C. exposes parts of an application to be consumed or interacted with by another application
• D. provides a software framework for developers to build applications

Answer: C

NEW QUESTION 20

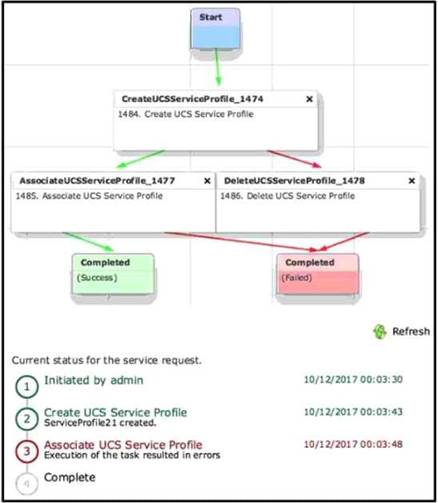

Refer to the exhibit.

Which description of the workflow is true?

• A. It attempts to associate the service profile to another blade
• B. It completes in a failed state
• C. It pauses while waiting for user input
• D. It deletes the service profile

Answer: A

NEW QUESTION 21
Which physical connection rule must you follow when the Cisco ACl fabric is wired?

• A. A spine can connect to the access port of a leaf
• B. A spine can connect to a leaf
• C. A leaf can connect to a leaf
• D. A spine can connect to a spine.

Answer: B

NEW QUESTION 22
Which four components are part of the Cisco Data Center Nexus switching offering? (Choose four.)

• A. Cisco 6000 Series Switch
• B. Cisco ASR 9000
• C. Cisco 1000v Switch
• D. Cisco IOS Software
• E. Cisco 4500E Switch
• F. Cisco NX-OS Software
• G. Cisco 6509-E Switch
• H. Cisco Fabric Extender

Answer: ACFH

NEW QUESTION 23
Which feature monitors state transitions of components and processes in Cisco Unified Computing System?

• A. logical state arbiter
• B. discovery
• C. finite state machine
• D. state monitor

Answer: C

Explanation:
A finite state machine (FSM) is a workflow model, similar to a flow chart, that is composed of the following:
• Finite number of stages (states)
• Transitions between those stages
• Operations
The current stage in the FSM is determined by past stages and the operations performed to transition between the stages. A transition from one stage to another stage is dependent on the success or failure of an operation.
Cisco UCS Manager uses FSM tasks that run in the Data Management Engine (DME) to manage end points in the UCS object model, including the following:
• Physical components (chassis, I/O module, servers)
• Logical components (LAN cloud, policies)
• Workflows (server discovery, service profile management, downloads, upgrades, backups) Reference: http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ts/faults/reference/ErrMess/FaultsIntroduction.html#wp1082815

NEW QUESTION 24
Refer to the exhibit below:

The figure shows CLI interface forVSAN configuration of Cisco MDS 9000 switch.
Which command is required to enter the configuration prompt for VSAN as shown in figure?

• A. config t
• B. vsan name
• C. vsan
• D. vsan database

Answer: D

NEW QUESTION 25
Which description of the purpose of an ACI is true?

• A. exposes parts of an application to be consumed or interacted with by another application.
• B. provides a software framework for developers to build applications
• C. provides a secure platform to authenticate internal users
• D. assists developers to understand the underlying code of an application

Answer: A

NEW QUESTION 26
DRAG DROP

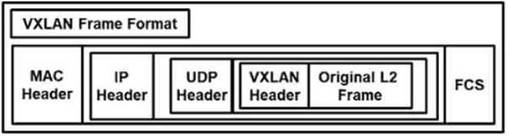

Refer to the exhibit.

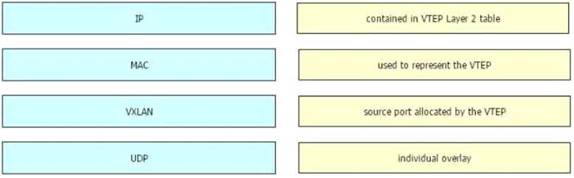

Drag and drop the headers from the left onto the correct descriptions of the header content on the right.

• A. Mastered
• B. Not Mastered

Answer: A

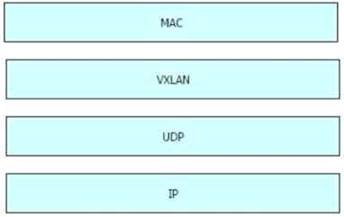

Explanation:

NEW QUESTION 27
Which device connects Cisco UCS B-Series servers to Cisco Fabric Switches?

• A. Fabric Extender
• B. a host bus adapter
• C. Fabric interconnects
• D. a fabric switch

Answer: B

NEW QUESTION 28
The marketing, research, and business departments of a company each have servers and storage in
the SAN fabric connected to a Cisco MDS switch. The storage engineer is asked to ensure that each department's servers and storage are isolated from the other departments. Which two steps can the engineer take to accomplish this task? (Choose two.)

• A. Create VSAN 10, 11, and 12 on the MDS switch.
• B. Add marketing devices to VSAN 10, research to VSAN 11, and business to VSAN 12.
• C. Create VSAN 10 on the MDS switch.
• D. Add marketing, research, and business devices to VSAN 10.
• E. Create VSAN 10 and VSAN 11.
• F. Add all storage devices to VSAN 10. Add all server devices to VSAN 11.

Answer: AB

NEW QUESTION 29
When configuring virtual PortChannels on Cisco Nexus switches, what does the vPC domain consist
of?

• A. two vPC peer switches connected by a virtual switch link
• B. two VSS peer switches connected by a peer link
• C. two VSS peer switches connected by a port channel
• D. two vPC peer switches connected by a peer link

Answer: D

NEW QUESTION 30
Which of the statements about Cisco WAAS is true?

• A. All of these
• B. It consists of WAE that optimizes UDP traffic.
• C. It consists of WAE that optimizes ICMP traffic.
• D. It consists of WAEs that optimize TCP traffic.

Answer: D
