NEW QUESTION 1

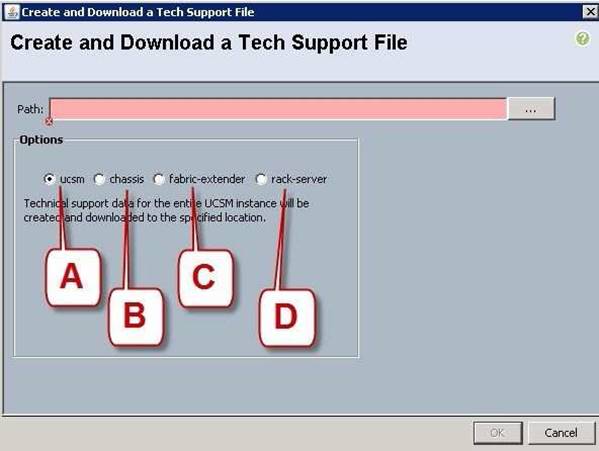

Refer to the exhibit.

Which option should you select to get the output of the show tech-support detail command for the Cisco UCS B-Series blade?

• A. A - ucsm
• B. B - chassis
• C. C - fabric-extender
• D. D - rack-server

Answer: B

NEW QUESTION 2
Which three statements about FCoE are true? (Choose three.)

• A. Allows Fibre Channel and Ethernet networks to share a single, integrated infrastructur
• B. Encapsulates Fibre Channel frames into Ethernet frames, which allows them to run alongside traditional IP traffi
• C. Increases capital costs due to the difficulty to manag
• D. Consolidates I/O traffic in the data cente

Answer: ABD

NEW QUESTION 3

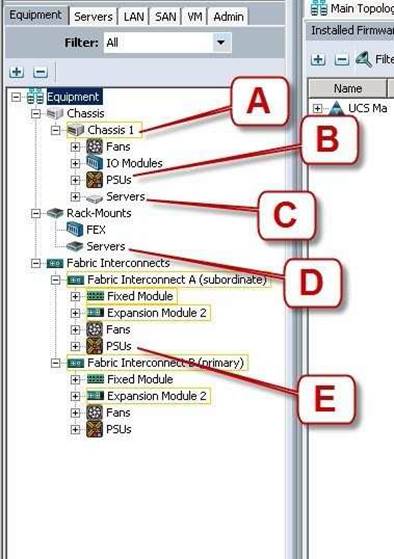

Refer to the exhibit.

Where is the best place to see the power supply status of the blade server enclosure?

• A. A - Chassis 1
• B. B - Chassis 1 - PSUs
• C. C - Chassis1 - Servers
• D. D - Rack-Mounts - Servers
• E. E - Fabric Interconnects A - PSUs

Answer: B

NEW QUESTION 4
Which Cisco NX-OS command displays kernel uptime?

• A. show module
• B. show version
• C. show license
• D. show boot
• E. show interface

Answer: B

NEW QUESTION 5
Which type of optics module is supported by a 6-port 40 GE Cisco Nexus 7000 M2 Series I/O module?

• A. CPAK
• B. QSFP+
• C. SFP/SFP+
• D. CFP

Answer: B

NEW QUESTION 6

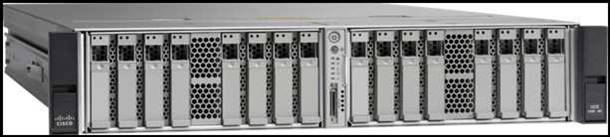

Refer to the exhibit.

What is the name of this rack-mount server?

• A. Cisco UCS C220 Rack-Mount Server
• B. Cisco UCS C240 Rack-Mount Server
• C. Cisco UCS C420 Rack-Mount Server
• D. Cisco UCS C460 Rack-Mount Server

Answer: C

NEW QUESTION 7
How do you find the serial number of a Cisco UCS 5108 Blade Server chassis?

• A. Use the Cisco UCS Admi
• B. Use the Cisco UCS Applicatio
• C. Use the Cisco UCS Assistan
• D. Use the Cisco UCS Manage

Answer: D

NEW QUESTION 8

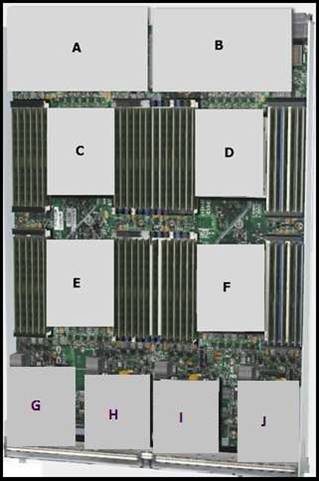

Refer to the exhibit.

Which item does F represent?

• A. HDD 1
• B. TFP Module
• C. SuperCap Module
• D. CPU 2
• E. CMOS Battery

Answer: D

NEW QUESTION 9
How many 10GBASE-T port licenses are preinstalled on a Cisco Nexus 3064-32T?

• A. 16
• B. 32
• C. 48
• D. 64

Answer: B

NEW QUESTION 10
Which two major components does a Cisco Nexus 1000V Series Switch have? (Choose two.)

• A. Virtual Fiber Channel Module
• B. Virtual Ethernet Module
• C. Virtual Supervisor Module
• D. Virtual Memory Controller Module
• E. Virtual Network Module

Answer: BC

NEW QUESTION 11
Refer to the exhibit.

Which three options are features of the Cisco UCS 6248UP Fabric Interconnect front panel? (Choose three.)

• A. Console port
• B. FCoE port
• C. 10 Gb/s port
• D. Fan module
• E. USB port

Answer: ADE

NEW QUESTION 12

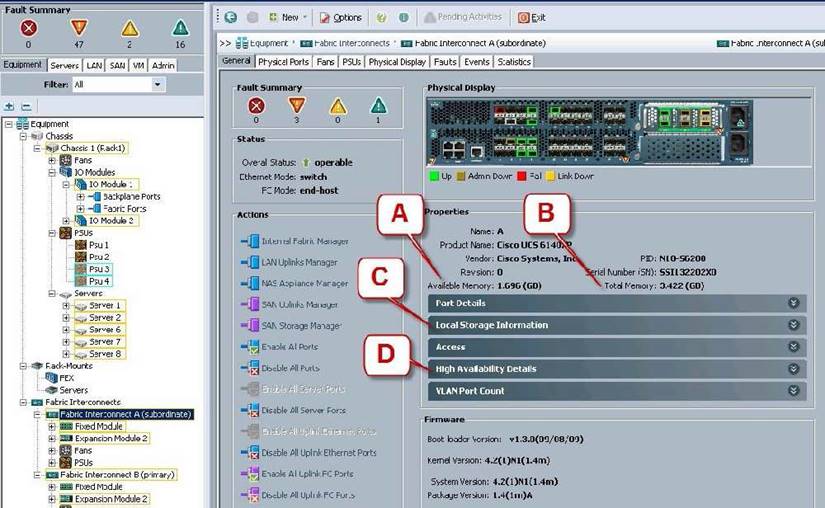

Refer to the exhibit.

Where is the best place to see bootflash free space?

• A. A - Available Memory
• B. B - Total Memory
• C. C - Local Storage Information
• D. D - High Availability Details

Answer: C

NEW QUESTION 13

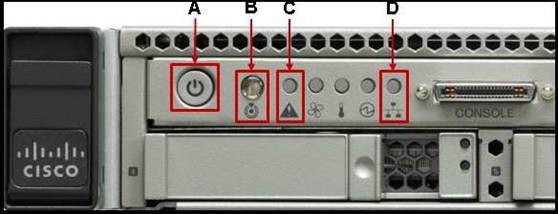

Refer to the exhibit.

Which statement correctly identifies the front panel LEDs on the Cisco UCS C220 Server?

• A. A is power button and power status LED; B is identification button and LED; C is system status LED; D is network link activity LE
• B. A is network link activity LED; B is system status LED; C is power button and power status LED; D is identification button and LE
• C. A is system status LED; B is network link activity LED; C is power button and power status LED; D is identification button and LE
• D. A is network link activity LED; B is system status LED; C is identification button and LED; D is power button and power status LE

Answer: A

NEW QUESTION 14
Which two statements about the Ethernet media are true? (Choose two.)

• A. A twisted-pair cable system has each pair of wires twisted together to reduce electromagnetic interferenc
• B. Compared to multimode fiber, the single-mode fiber is designed for shorter distances with higher cos
• C. 40 Gigabit Ethernet twinax cables deploy Enhanced Quad Small Form Factor Pluggable (QSFP+) connector
• D. The twinax cables can be found in either a shielded twisted-pair or an unshielded twisted-pair variatio

Answer: AC

NEW QUESTION 15
Which two statements about DIMM replacement in Cisco UCS Servers are true? (Choose two.)

• A. In blade servers, DIMMs can be installed in either 1, 2, 4, or 8 DIMMs per channe
• B. Rack-mount and blade servers have memory fault LEDs that indicate which DIMM requires attentio
• C. In servers that require pairs of DIMMs, the pairs must be identical (manufacturer, size, part #, and so on).
• D. If the memory in a server is not fully populated, you can install DIMMs in any open slo

Answer: AC

NEW QUESTION 16
Which two commands allow you to view the state of high availability between the two clustered Fabric Interconnects? (Choose two.)

• A. show cluster state extended
• B. show cluster extended-state
• C. show cluster HA status
• D. show cluster state

Answer: BD

NEW QUESTION 17
Which type of connection across the network does a SAN allow for multiple servers to access an unlimited amount of storage devices?

• A. any-to-many
• B. many-to-any
• C. any-to-any
• D. any-to-one
• E. one-to-any
• F. one-to-one

Answer: C

NEW QUESTION 18

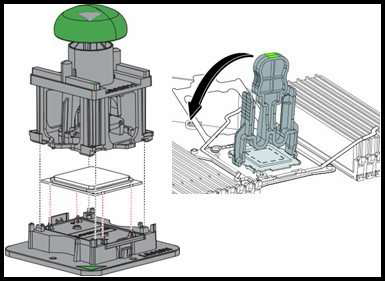

Refer to the exhibit.

This image shows a CPU Pick-and-Place tool and a CPU Socket Protective Cap Removal tool.
Which types of Cisco UCS servers and Intel Xeon processors do these tools support?

• A. Cisco UCS B22 Blade Server, C22 Rack Server, and C24 Rack Sever with Intel Xeon E5-2400 Series processors
• B. Cisco UCS B22 Blade Server, C22 Rack Server, and C24 Rack Sever with Intel Xeon E5-2600 Series processors
• C. Cisco UCS B200 M3 Blade Server, B420 M3 Blade Server, C220 Rack Server, C240 Rack Sever, and C420 Rack Sever with Intel Xeon E5-2400 Series processors
• D. Cisco UCS B200 M3 Blade Server, B420 M3 Blade Server, C220 Rack Server, C240 Rack Sever, and C420 Rack Sever with Intel Xeon E5-2600 Series processors

Answer: D

NEW QUESTION 19
What is the correct path to verify the Overall Status of Chassis 1 | Server 3?

• A. Equipment Tab > Chassis > Chassis 1 > Servers > Server 3 Status tab
• B. Equipment Tab > Chassis > Chassis 1 > Servers > Server 3 General tab
• C. Equipment Tab > Chassis > Chassis 1 > Servers > Server 3 FSM tab
• D. Servers Tab > Chassis > Server 3 General tab
• E. Status Tab > Chassis > Chassis 1 > Servers > Server 3
• F. Admin Tab > Chassis > Chassis 1 > Servers > Server 3 General tab

Answer: B

NEW QUESTION 20
Which five things should the administrator verify after performing maintenance or replacing a blade server? (Choose five.)

• A. blade server status
• B. hard drive status
• C. host OS boot status
• D. CPU status
• E. mezzanine card status
• F. memory DIMM status
• G. fan and power status

Answer: ABDEF

NEW QUESTION 21
What does the system status LED look like when an over temperature or major alarm occurs on the Cisco UCS 6120XP Fabric Interconnect?

• A. Amber
• B. Red
• C. Blinking amber
• D. Blinking red

Answer: C

NEW QUESTION 22
Which action should the administrator take before physically removing a blade server for maintenance or replacement?

• A. Force the server to shut dow
• B. Disassociate the service profil
• C. Decommission the serve
• D. Perform a graceful shutdown of the serve

Answer: C

NEW QUESTION 23
Which method does FCIP use to enable connectivity of geographically distributed Fibre Channel SANs over IP?

• A. routing
• B. tunneling
• C. handshaking
• D. transporting

Answer: B

NEW QUESTION 24
What is the maximum number of supervisor modules that the Cisco MDS 9710 Switch supports?

• A. 1
• B. 2
• C. 4
• D. 6
• E. 8

Answer: B

NEW QUESTION 25
Which three statements about powering down a Cisco UCS C-Series Rack-Mount Server to perform maintenance or replacement are true? (Choose three.)

• A. Standby power mode: Power is supplied only to the service processor and the cooling fans, and it is safe to power off the server from this mod
• B. Power status LE
• C. Green indicates that the server is in main power mode and can be safely powered of
• D. Graceful shutdown: Press and release the power butto
• E. The operating system performs a graceful shutdown, and the server goes to standby mode, which is indicated by an amber power status LE
• F. Disconnect the power cords from the power supplies in your server to completely power off the serve
• G. Only an emergency shutdown can be performed using the power button on the server front pane
• H. The Cisco UCS C-Series Rack-Mount Server has only one power mod

Answer: ACD
