NEW QUESTION 1
DRAG DROP
Drag and drop the steps from the left into the correct order on the right that describes the flow of presence updates when a user manually sets the presence status in Cisco Jabber. Not all options are used.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 2
Refer to the exhibit.

Which action allows a remote Cisco Jabber user utilizing Mobile and Remote Access to automatically log in to a Cisco Unity Connection voicemail box via OAuth?

• A. Add CUCM under System Settings > Authz Servers in Cisco Expressway-E.
• B. Add CUCM under System Settings > Authz Servers in Cisco Expressway-C.
• C. Add CUCM under System Settings > Authz Servers in Cisco Unity.
• D. Add CUCM under System Settings > Authz Servers in Cisco Unity Connection.

Answer: D

Explanation:
Reference: https://community.cisco.com/t5/unified-communications/jabber-mra-unity-voice-mail-integration-issue/td-p/3195653

NEW QUESTION 3
Users report issues while logging in to their voicemail using the Voicemail tab in their Cisco Jabber clients. The issue occurs after users provide valid Cisco Unified Communications credentials, but they receive a failure message. What is the cause of this issue?

• A. A proper service profile is not configured on Cisco Unified Communications Manager.
• B. The voicemail users are not configured in the Cisco Unity Connection server.
• C. The web application voicemail password is set “User Must Change at Next Sign-in”.
• D. The voicemail password is not set for all users.

Answer: A

NEW QUESTION 4
Refer to the exhibit.

Users report that they cannot see the Chat Rooms icon on their Cisco Jabber clients. This feature works without issue in the lab. An engineer reviews the Cisco IM&P and Jabber configuration and finds that the jabber-config.xml file is configured properly to support this feature. Which activity should be performed on the IM&P server to resolve this issue?

• A. Activate Cisco XCP Connection Manager in Cisco Unified Serviceability > Tools > Service Activation.
• B. Restart Cisco XCP Message Archiver in Cisco Unified Serviceability > Tools > Control Center – Feature Services.
• C. Restart XCP Text Conference Manager in Cisco Unified Serviceability > Tools > Control Center – Network Services.
• D. Activate XCP Text Conference Manager in Cisco Unified Serviceability > Tools > Service Activation.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/jabber-windows/118684-probsol-chat-00.html

NEW QUESTION 5
Which SIP request type is used by Cisco Unity Connection to inform Cisco Unified Communications manager that the Message Waiting Indicator must be turned on or off for a specific line?

• A. NOTIFY
• B. UPDATE
• C. SUBSCRIBE
• D. PUBLISH

Answer: A

NEW QUESTION 6

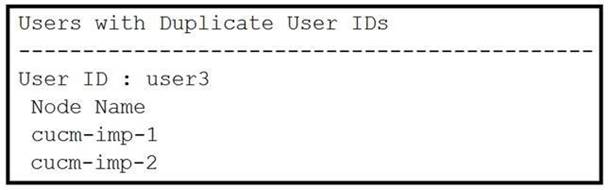

Refer to the exhibit.

Which two steps resolve the “Users with Duplicate User IDs” message? (Choose two.)

• A. Rename the directory URI value for one of the users to ensure that there is no duplication.
• B. Rename the User ID value for one user if different users on different clusters have the same User ID assigned.
• C. Unassign a user from one of the clusters when the same user is assigned to two different clusters.
• D. Assign the duplicate user to the secondary Cisco IM and Presence node.
• E. Delete the user ID for the duplicate user ID.

Answer: BC

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/configAdminGuide/10_0_1/CUP0_BK_C318987B_00_config-admin-guide-imp-100/CUP0_BK_C318987B_00_config-admin-guide- imp100_chapter_010101.html

NEW QUESTION 7
SAML SSO is enabled in Cisco Unified Communications Manager. What happens when a browser-based client attempts to access a protected resource on a service provider?

• A. The browser follows the redirect and issues an HTTPS GET request to the IdP.
• B. The IdP checks for a valid browser session.
• C. The service provider generates a SAML authentication request.
• D. The SAML request is maintained as a query parameter in the GET request.

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/SAML_SSO_deployment_guide/12_5_1/cucm_b_saml-sso-deployment-guide-12_5/cucm_b_saml-sso-deployment-guide-12_5_chapter_01.html

NEW QUESTION 8
What prevents toll fraud on voicemail ports?

• A. IP address trusted list on the PSTN gateway
• B. CSS
• C. Block OffNet to OffNet Transfer service parameter
• D. FAC

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unity-connection/119337-technote-cuc-00.html

NEW QUESTION 9
Which CLI command is used to collect traces from the Cisco Presence engine for seven days?

• A. file build log cisco_presence_engine 7
• B. file build log cisco_presence 168
• C. file build log presence_engine 7
• D. file build log presence_engine 168

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/configAdminGuide/12_0_1/cup0_b_config-admin-guide-imp-1201/cup0_b_config-admin-guide-imp-1201_chapter_010101.html

NEW QUESTION 10
Refer to the exhibit.

Users connected to the internal network report a “Cannot communicate with the server” error while trying to log in to Cisco Jabber using auto service discovery. The Jabber diagnostics and the SRV record configuration are as shown in the exhibit. The host cucm1.ccnp.cisco.com is correctly resolved by the user desktops with the Cisco Unified Communications Manager IP address. Why is the user not able to log in?

• A. SRV protocol is not set up correctl
• B. It should be _tls instead of _tcp.
• C. Marking weight as 0 on the SRV record makes it inactive, so Jabber cannot discover the Cisco Unified CM.
• D. The port specified on the SRV record is wrong.
• E. The domain ccnp.cisco.com does not exist on the DNS server.

Answer: D

Explanation:
Reference: https://community.cisco.com/t5/collaboration-voice-and-video/jabber-client-login-and-login-issues/ta-p/3143446

NEW QUESTION 11
Refer to the exhibit.

Apple Push Notification integration is configured in a Cisco Unified IM and Presence deployment and has been working property. Administrators now report the error “Push notification settings cannot be configured. 400 Bad Request.” in the GUI, and HTTP logs are displaying the errors that are shown in the exhibit. Which action solves this issue?

• A. Fix the network connectivity to Apple iCloud.
• B. Reboot the IM&P cluster.
• C. Change the HTTP proxy settings to remove errors in request syntax.
• D. Update Refresh Token Manually.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/push_notifications/cucm_b_push-notifications-deployment-guide.pdf

NEW QUESTION 12
What are two Cisco Jabber 12.6 on-premises deployment types that can be run on a Windows-enabled PC? (Choose two.)

• A. Contact Center Agent
• B. IM-only
• C. multicloud-based
• D. Full UC
• E. cloud-based

Answer: BD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/12_6/cjab_b_on-prem-deployment-cisco-jabber_12-6.pdf

NEW QUESTION 13
Which two SSO features are true? (Choose two.)

• A. allows Jabber to use LDAP directory services for contact imports
• B. allows LDAP user import on Cisco Unified Communications Manager
• C. improves productivity by reducing time spent re-entering credentials for the same identity
• D. transfers the authentication from the system that hosts the applications to a third-party system
• E. reduces costs by decreasing the number of help calls that are made for voicemail PIN resets

Answer: CD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/SAML_SSO_deployment_guide/11_0_1/CUCM_BK_SF9D0502_00_saml-sso-deployment-guide-1101/CUCM_BK_SF9D0502_00_saml-sso-deployment- guide11_chapter_01.html

NEW QUESTION 14
Which statement about SIP federation between Cisco Unified Communications IM and Presence and Microsoft Skype for Business is true?

• A. Add the federated user as a contact in Jabber to view its presence status.
• B. The role of SIP Proxy service is to process the XMPP packet in from Jabber and convert it to SIP.
• C. TLS is optional.
• D. Use of directory URI as an IM addressing scheme is not supported.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/interdomain_federation/12_5_1/cup0_b_interdomain-federation-1251/cup0_b_interdomain-federation-1251_chapter_01000.html

NEW QUESTION 15
Which two methods does Cisco Jabber use for contact searching in an on-premises deployment model? (Choose two.)

• A. HTTP
• B. XMPP
• C. UDS
• D. LDAP
• E. SIP

Answer: CD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab11/collab11/presence.html

NEW QUESTION 16
Refer to the exhibit.

Which protocol is used for communication between Cisco IM and Presence and Microsoft Exchange Server?

• A. POP3
• B. IMAP
• C. EWS
• D. XMPP

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab11/collab11/presence.html

NEW QUESTION 17
Which two Cisco Unity Connection logs are used to troubleshoot issues with Message Waiting Indicators? (Choose two.)

• A. Connection IMAP Server
• B. Connection Mailbox Sync
• C. Connection Notifier
• D. Connection Message Transfer Agent
• E. Connection Conversation Manager

Answer: DE

NEW QUESTION 18
Which entity is a standard component used for authentication by SAML 2.0?

• A. identity provider
• B. session broker
• C. Internet service provider
• D. client access server

Answer: A

NEW QUESTION 19
What is the maximum number of Cisco Unity Connection locations connected in a HTTPS network?

• A. 50
• B. 25
• C. 200
• D. 10

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/https_networking/guide/10xcuchttpsnetx/10xcuchttpsnet010.html

NEW QUESTION 20
Fraudulent calls are being made from Cisco Unity Connection. Which action prevents the calls from reaching the PSTN using SCCP integration?

• A. Change the configuration of the routing rule.
• B. Change the CSS of the voicemail port.
• C. Change the Rerouting CSS on the trunk to Cisco Unity Connection.
• D. Remove values from restriction table.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unity-connection/119337-technote-cuc-00.html

NEW QUESTION 21
Digital networking is configured between two Cisco Unity Connection clusters using an HTTPS connection. Which two objects are replicated between these two clusters? (Choose two.)

• A. partitions and search spaces
• B. user greetings
• C. user templates and user greetings
• D. call handlers
• E. users and their corresponding mailboxes

Answer: AE

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/https_networking/guide/10xcuchttpsnetx/10xcuchttpsnet010.html

NEW QUESTION 22
An engineer is checking the Cisco Unified Communications Manager and Cisco Unity Connection integration and presses the Message button on a phone to check the voicemail. Which action does Cisco Unified CM take?

• A. Cisco Unified CM looks up the voicemail pilot configured to dial.
• B. Cisco Unified CM routes the configured hunt pilot to Unity Connection.
• C. Cisco Unified CM looks up the hunt pilot configured to dial.
• D. Cisco Unified CM sends an AXL query to Unity Connection.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/9_1_1/ccmsys/CUCM_BK_C5565591_00_cucm-system-guide-91/CUCM_BK_C5565591_00_cucm-system-guide-91_chapter_011110.html

NEW QUESTION 23
After integrating Cisco Unity Express with Cisco Unified Communications Manager Express, users report that the system does not respond to their digit presses. Which two configuration snippets resolve this issue? (Choose two.)

• A. dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-kpml codec g729r8
• B. dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-notify codec g711ulaw
• C. dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay rtp-nte codec g711ulaw
• D. dial-peer voice 6800 voip destination-pattern 5...session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-kpml codec g711ulaw
• E. dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-notify codec g729r8

Answer: BC

NEW QUESTION 24
Which type of SRV record provides the location of Cisco Expressway-E?

• A. _collab-edge._tls.example.com
• B. _cisco-uds._tcp.example.com
• C. _cuplogin._tcp.example.com
• D. _http._tcp.example.com

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/Windows/9_7/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configuration-guide/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configuration-guide_chapter_010.html
