NEW QUESTION 1
A company has a Unity 300 system with 200 SAS drives. They need to increase the number of SAS drives by 300. Which in-place upgrade is required?

• A. Unity 400F
• B. Unity 400
• C. Unity 600F
• D. Unity 500

Answer: D

Explanation:
References:
https://www.emc.com/collateral/data-sheet/h14958-unity-hybrid-family-ss.pdf?isKoreaPage=false&domainUrlF

NEW QUESTION 2
A storage administrator configured a Hybrid Dell EMC Unity XT storage system using one default port containing three disk types. They need additional Flash capacity.
What is the correct way to expand the pool?

• A. Add a RAID Group of SAS Flash 4 drives to the pool
• B. Add 2 SAS Flash drives to the FAST Cache
• C. Add 1 SAS Flash drive to the pool
• D. Add a RAID Group of SAS Flash drives to the pool

Answer: A

NEW QUESTION 3
What are considerations when configuring a Proxy NAS Server?

• A. Can be created on either SP regardless of where the replicated NAS Server residesMay utilize different access protocols as the replicated NAS Server
• B. Can be created on either SP regardless of where the replicated NAS Server residesMust use the same access protocols as the replicated NAS Server
• C. Must be created on the same SP as the replicated NAS ServerMust use the same access protocols as the replicated NAS Server
• D. Must be created on the same SP as the replicated NAS ServerDifferent access protocols may be utilized as the replicated NAS Server

Answer: C

NEW QUESTION 4
A system administrator has asynchronous remote replication configured between a pair of systems and replication is currently operating normally. When the administrator views a replication session on the Unisphere Sessions page for the destination system, which option is available when viewing “More Actions”?

• A. Failover with sync
• B. Failover
• C. Pause
• D. Sync

Answer: B

Explanation:
References: https://www.emc.com/collateral/white-papers/h15088-dell-emc-unity-replication-technologies.pdf (20)

NEW QUESTION 5
A service provider is installing a Unity storage system for an end-user. The end-user is concerned about network security and will not allow the service provider access to the network.
How can the service provider set a static IP address for the Unity storage system management interface?

• A. Use the embedded InitCLI tool
• B. Connect directly to the service ports and configure the networking through UEMCLI
• C. Use an IPMI serial over LAN connection
• D. Use the Connection Utility to create a configuration file

Answer: B

Explanation:
The svc_initial_config UEMCLI command sets up initial system configuration. It configures a management IP address when the Connection Utility (CU) is not available on the network. If an address is set, this command can also change the management IPv4 and IPv6 configuration mode. It attempts to configure the system with the given friendly name and/or network parameters.
Note: The Unisphere CLI (UEMCLI) is a tool that provides us with the CLI access to perform the same actions as one would on the Unisphere web interface.
References: https://www.emc.com/collateral/TechnicalDocument/docu69328.pdf (page 60)

NEW QUESTION 6

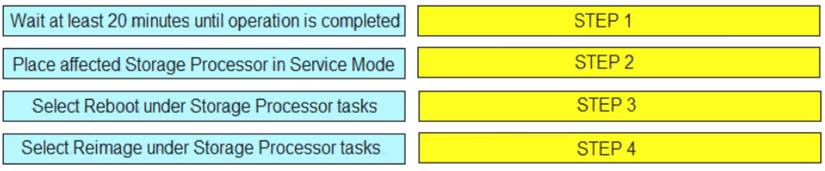

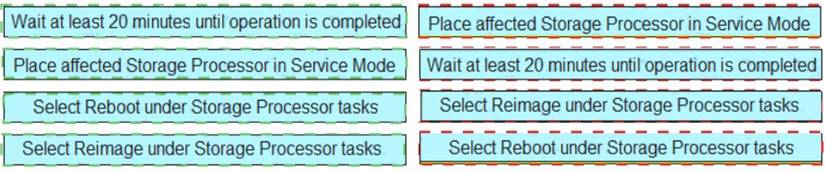

A user needs to re-image a Dell EMC Unity Storage Processor and resume normal operations. What is the correct sequence of steps to complete this task using Unisphere?

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 7
Which feature provides the ability to provision block and file storage for Microsoft Windows or Microsoft SharePoint sites?

• A. EMS Storage Integrator for Windows
• B. Array Offloaded Data Transfer
• C. vStorage APIs for Array Integration
• D. EMC Virtual Storage Integrator

Answer: A

NEW QUESTION 8
What is the default file system quota policy on the Dell EMC Unity XT storage array?

• A. File Size
• B. Blocks
• C. User Quotas
• D. Tree Quotas

Answer: A

Explanation:
When using quotas, administrators have the option to calculate file system usage in one of two ways. This option, which is configured on a per file system basis, may be set to File Size or Block based calculation. When using the default setting of File Size, disk usage is calculated based on logical file sizes in 1K increments. Because of this, it is possible that used space may be reported from a quota perspective as more than the actual usage if holes exist in a sparse file. This setting is generally recommended for Windows environments. The Block quota policy calculates disk usage in 8-16KB file system blocks, and is accurate with regard to the actual allocation down to the block level. This setting is recommended for UNIX environments.

NEW QUESTION 9
A company has a VMware host installed with FC HBAs that is connected to a Dell EMC Unity XT storage array. A 500 GB LUN is provisioned to this host from the Unity array and is in production. The VMware administrator has configured a new vSwitch with the NICs on the server intended for iSCSI traffic. The storage administrator is asked to configure software iSCSI and provision a new 1 TB LUN from the storage array via iSCSI.
What is a consideration when satisfying this request?

• A. A connection must be established between the host iSCSI initiators and Unity iSCSI targets before provisioning the new LUN
• B. Any single host should connect to any single array using one protocol only
• C. The iSCSI configuration must use all the NIC connections to the host
• D. Two iSCSI target interfaces must be configured with IP addresses from separate subnets

Answer: D

NEW QUESTION 10
Based on Dell EMC based practices, under what conditions would you consider creating multiple pools on a Unity 500?

• A. Separate resources for multi-tenancyCreate larger failure domains
• B. Combine pools where FAST Cache is and is not activeConsolidate resources for multi-tenancy
• C. Dedicate resources to meet specific performance goalsSeparate resources for multi-tenancy
• D. Combine pools where FAST Cache is and is not activeDedicate resources to meet specific performance goals

Answer: C

Explanation:
References: https://www.emc.com/collateral/TechnicalDocument/docu69895.pdf (p.13)

NEW QUESTION 11
What is the maximum recovery point objectives (RPOs) configurable when using Unity native asynchronous replication?

• A. Minimum = 1 minuteMaximum = 60 minutes
• B. Minimum = 1 minuteMaximum = 1440 minutes
• C. Minimum = 5 minutesMaximum = 60 minutes
• D. Minimum = 5 minutesMaximum = 1440 minutes

Answer: D

Explanation:
References:
https://www.dellemc.com/en-ie/documentation/unity-family/unity-p-replication-config/02-unity-rep-br-workflo

NEW QUESTION 12
Which Dell EMC Unity service task is used to reinstall the root operating system while leaving the existing data intact?

• A. Restart the Management Software
• B. Restart the Management Server
• C. Reinitialize the Storage System
• D. Reimage the Storage Processor

Answer: D

NEW QUESTION 13
A company with multiple remote offices has decided to use synchronous replication. What systems support this capability?

• A. Dell EMC Unity XT and Dell EMC UnityVSA
• B. Dell EMC UnityVSA only
• C. Dell EMC UnityVSA and VNXe
• D. Dell EMC Unity XT only

Answer: C

NEW QUESTION 14
What is the minimum VMware Hypervisor version a server must be running in order to support the deployment of a UnityVSA system?

• A. 4.0
• B. 5.0
• C. 5.5
• D. 6.0

Answer: C

Explanation:
UnityVSA requirements include: VMWare ESXi 5.x, 6.x
References: https://sweden.emc.com/products-solutions/trial-software-download/unity-vsa.htm

NEW QUESTION 15
How is encryption set for a Unity storage system?

• A. By selecting “Status” on the Manage Encryption page
• B. Automatically the first time the license file is applied
• C. By clicking the “Mode” checkbox on the Manage Encryption page
• D. Programmatically set at the factory.

Answer: B

NEW QUESTION 16
By default, the storage system transfers log information on which network port?

• A. 138
• B. 464
• C. 514
• D. 2049

Answer: C

NEW QUESTION 17
Under what conditions should fully provisioned storage be recommended?

• A. Storage objects subject to snapshots
• B. Workloads requiring high throughput
• C. Workloads requiring high bandwidth
• D. Storage objects subject to replication

Answer: D

NEW QUESTION 18
When a copy of a file system snapshot is created, what are the characteristics of the copy?

• A. Read/write, shareable to clients
• B. Read-only, accessed by clients through the CVFS mechanism
• C. Read-only, shareable to clients
• D. Read/write, accesses by clients through the CVFS mechanism

Answer: C

NEW QUESTION 19
......
