NEW QUESTION 1
A failure occurs on the network between two BFD and OSPF neighbors. Drag and drop the protocol actions from the left into the correct order on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 2
What are two reasons to select OTV as the DCI solution to connect multisite topologies? (Choose two.)

• A. It propagates hosts reachability without support of traffic flooding.
• B. Layer 3 failures do not propagate beyond the OTV edge device.
• C. It extends the spanning tree between data centers.
• D. It is an open standard.
• E. It constrains HSRP hello messages to each data center.

Answer: BC

NEW QUESTION 3
Drag and drop the components from the left onto the descriptions on the right that indicate what occurs to Fibre Channel fabric when that component fails.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 4

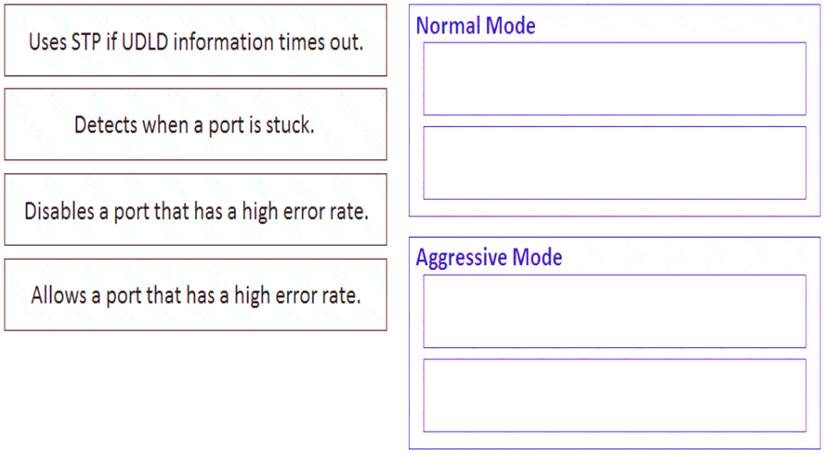

Drag the appropriate from the left onto the current UDLD modes of operation on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 5
Which two configuration methods can be used to deploy QoS to Cisco MDS Series switches? (Choose two.)

• A. zone-based QoS
• B. multiple QoS policies that match individual devices
• C. VSAN-based QoS
• D. FCoE VLAN-based QoS
• E. multiple QoS policies that match multiple devices

Answer: AC

NEW QUESTION 6
Which pools are used when a vNIC template is created in Cisco UCS Manager?

• A. WWPN
• B. UUID
• C. MAC
• D. IP

Answer: C

NEW QUESTION 7
Which orchestration tool provides a graphical interface to manage LAN and SAN fabrics?

• A. Cisco Virtual Topology System
• B. Cisco Data Center Network Manager
• C. Cisco Nexus Fabric Manager
• D. Cisco CloudCenter

Answer: B

NEW QUESTION 8

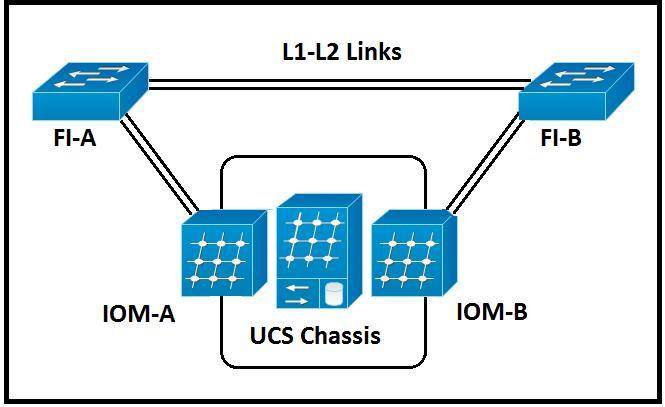

Refer to the exhibit.

A Cisco UCS chassis that has two IOMs is discovered. The chassis discovery policy creates a fabric port channel. What is the result of this policy?

• A. Cisco UCS Manager creates two separate fabric port channels.
• B. Cisco UCS Manager creates a single fabric port channel.
• C. The port channel is disabled until an administrator enables it manually.
• D. Each uplink that connects an IOM is configured as a discrete link.

Answer: A

NEW QUESTION 9
A Cisco UCS instance has four interfaces on a UCS VIC. Where on the fabric interconnect does each interface terminate?

• A. vPC
• B. virtual interface
• C. port channel
• D. physical port

Answer: B

NEW QUESTION 10
Refer to the exhibit.

Which template is used when a vHBA template pair is created for a specific server that inherits its attributes from an existing template?

• A. Secondary
• B. Initial
• C. Updating
• D. Primary

Answer: B

NEW QUESTION 11
Which mode must be enabled on a Cisco UCS Fabric Interconnect to connect directly to a storage array?

• A. NPIV mode
• B. FC end-host mode
• C. NPV mode
• D. FC switching mode

Answer: D

Explanation:
Section: Storage Network Design

NEW QUESTION 12
Which two configurations allow for routing traffic between two VDCs? (Choose two.)

• A. Connect the VDCs to an external Layer 3 device.
• B. Cross-connect the ports between the VDCs.
• C. Create VRF-aware software infrastructure interfaces.
• D. Create a policy map in the default VDC that routes traffic between the VDCs.
• E. Create interfaces in the VDC that can be accessed by another VDC.

Answer: AD

NEW QUESTION 13
Which technology enables Layer 2 extension between remote data center sites?

• A. FCIP
• B. GRE
• C. DMVPN
• D. OTV

Answer: D

NEW QUESTION 14
What is an advantage of using OTV as compared to VPLS for data center redundancy?

• A. prevents loops on point-to-point links
• B. provides head-end replication
• C. uses a proactive MAC advertisement
• D. provides full-mesh connectivity

Answer: A

NEW QUESTION 15
Which authentication software natively runs within the CLI of Cisco NX-OS devices?

• A. Python
• B. Ansible
• C. Puppet
• D. Chef

Answer: B

NEW QUESTION 16
What influences the number of ISLs that are required between Cisco MDS Series switches?

• A. FCoE protocol
• B. type of storage
• C. end-to-end oversubscription ratio
• D. N Port virtualization

Answer: C

NEW QUESTION 17
Which protocol prevents fiber failures from causing a Layer 2 loop in a dark fiber DCI?

• A. BFD
• B. UDLD
• C. MCP
• D. LLDP

Answer: B

NEW QUESTION 18
What are two characteristics of VRF-Lite on the Cisco NX-OS platform? (Choose two.)

• A. Layer 3 interfaces can belong to multiple VRFs.
• B. VRF-Lite interfaces can be Layer 2.
• C. Overlapping IP addresses are permitted on different VRFs.
• D. Interfaces that belong to VRFs can be physical or logical.
• E. VRF-Lite interfaces support MPLS.

Answer: CD

NEW QUESTION 19
The management of the Cisco Nexus switches is provided over an isolated put-of-band network. The VDC feature is configured on the Cisco Nexus core switches. How is out-of-band management access provided for each VDC?

• A. All the VDC have the same out-of-band IP address.
• B. Each VDC has a dedicated out-of-band Ethernet management port.
• C. Each VDC has a unique out-of-band IP address from the same IP subnet.
• D. Each VDC has a unique out-of-band IP address from different IP subnets among VDCs.

Answer: C

NEW QUESTION 20
Which approach splits a pair of clustered fabric interconnects into two standalone devices?

• A. Run the disable fips-mode command on each fabric interconnect.
• B. Run the connect local-management command on each fabric interconnect.
• C. Erase the configuration of both fabric interconnects.
• D. Unplug the Layer 1 and Layer 2 interfaces between the devices.

Answer: D

NEW QUESTION 21
Which two naming formats identify target or initiator iSCSI nodes? (Choose two.)

• A. WWPN
• B. EUI
• C. IQN
• D. WWN
• E. OUI

Answer: CD

NEW QUESTION 22
When planning to deploy a load-balancing service as a managed node, which ACI configuration must be included?

• A. BGP ECMP
• B. Layer 4 to Layer 7 device package
• C. inline load-balancing device
• D. ITD

Answer: B

NEW QUESTION 23
Drag and drop the feature descriptions from the left onto the correct UCS Fabric Interconnect modes on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
