NEW QUESTION 1
An administrator is attempting to remove an ESXi 6.x host from a vSphere Distributed Switch (vDS). When the administrator attempts to remove the host, the following error is observed:
The resource '16' is still in use.
What three steps are needed to successfully remove the host from the switch? (Choose three.)

• A. Select Manage Ports on the vDS for the host.
• B. Locate all ports currently in use on the vDS for the host.
• C. Migrate or delete any vmkernel or virtual machine adapters associated with the switch.
• D. Remove all network cards from the switch before trying to remove the host.
• E. Create a standard switch for everything to be automatically be migrated to.

Answer: ABC

NEW QUESTION 2
An administrator is trying to open a remote console session to a virtual machine using the vSphere Web Client. With each attempt, an error message is displayed that reads:
HTTP ERROR 404
What is the most likely cause for the error?

• A. Port 902 is blocked by the firewall.
• B. Another program or process is using port 903.
• C. Outgoing UDP is enabled for port 902 on the firewall.
• D. Another program or process is using port 9443.

Answer: D

NEW QUESTION 3
A company is planning an upgrade from vSphere 4.x to vSphere 5. They currently have three dual CPU servers licensed for ESXi 4.1 Advanced
Each server has 256GB of RAM installed.
Their virtual machines are sized three ways. Light. 1v CPU, 4GB RAM
Medium. 2v CPU, 8GB RAM Heavy. 4 vCPU, 12GB RAM
The Production workload consists of. 20 Light servers
20 Medium servers
2 Heavy servers
The Development workload consists of. 10 Light servers
10 Medium servers
How will vSphere 5 licensing impact their upgrade? (Choose two.)

• A. They will need to purchase additional ESXi licenses.
• B. They will be able to reduce their power consumption.
• C. They will be restricted from powering on additional virtual machines.
• D. A license upgrade will be needed to add vCPUs to the Heavy servers.

Answer: BC

Explanation: Reference: http://www.gabesvirtualworld.com/vsphere-5-licensing-with-vram-isn%E2%80%99t-that-bad-at-all/

NEW QUESTION 4
Which two statements are true about deploying and using vSphere Replication? (Choose two.)

• A. ESXi hosts managed by a single vCenter Server instance require a connection between the two vSphere Replication appliances.
• B. Sites managed by different vCenter Server instances require a connection between the two vSphere Replication appliances.
• C. Sites managed by different vCenter Server instances require the use of Site RecoveryManager and a connection between the two vSphere Replication appliances.
• D. ESXi hosts managed by a single vCenter Server instance require a single vSphere Replication appliance.

Answer: BD

NEW QUESTION 5
An administrator has purchased a new 10GB Converged Network Adapter (CNA) for installation in a system that is running ESXi 6.x. The administrator has downloaded the latest driver from the hardware vendor and wants to include the driver in an image. The image profile acceptance level is set to VMwareSupported. The acceptance level of the driver is VMwareSupported.
Which two statements are true about the inclusion of this driver in the image? (Choose two.)

• A. Support calls for the driver will be directed to the partner.
• B. The image can be built, but the driver will not be included in the image.
• C. The image can be built and the driver will be included.
• D. Support calls for the driver will be handled by VMware.

Answer: AC

Explanation: The acceptance level of all VIBs on a host must be at least as high as the host acceptance level. For example, if the host acceptance level is VMware Accepted, you can install VIBs with acceptance levels of VMware Certified and VMware Accepted, but you cannot install VIBs with acceptance levels of Partner Supported or Community Supported. To install a VIB with a less restrictive acceptance level than that of the host, you can change the acceptance level of the host by using the vSphere Client or by running esxcli software acceptance commands.
Setting host acceptance levels is a best practice that allows you to specify which VIBs can be installed on a host and used with an image profile, and the level of support you can expect for a VIB. For example, a Community Supported VIB might not be recommended for an ESXi server in a production environment.
http://pubs.vmware.com/vsphere-50/index.jsp?topic=%2Fcom.vmware.vsphere.upgrade.doc_50%2FGUID-27BBBAB8-01EA-4238-8140-1C3C3EFC0AA6.html

NEW QUESTION 6
An administrator is tasked with performing a vMotion migration of a virtual machine. The virtual machine is configured as follows:
✑ vSphere Flash Read Cache (vFRC) enabled
✑ Is part of a Distributed Resource Cluster (DRS) Cluster
Which two statements are true? (Choose two.)

• A. Each ESXi host in the cluster supports multiple virtual flash resources.
• B. Each ESXi host in the cluster supports one virtual flash resource.
• C. DRS treats powered-on virtual machines with Flash Read Cache as having a preferred affinity to their current host and moves them only for mandatory reasons.
• D. DRS treats powered-on virtual machines with Flash Read Cache as having a required affinity to their current host and does not move them.

Answer: BC

NEW QUESTION 7
Which three actions can be executed when an alarm is triggered? (Choose three.)

• A. Send an email.
• B. Send an SNMP trap.
• C. Run a script or command.
• D. Run an Orchestrator workflow.
• E. Send a trigger to syslog.

Answer: ABC

NEW QUESTION 8
Which three operations occur during a cold migration of a virtual machine? (Choose three.)

• A. The virtual machine disks are moved if the datastore is being changed.
• B. The virtual machine is registered with the destination server.
• C. The source virtual machine is removed from the old hosts.
• D. The virtual machine hardware is upgraded.
• E. The virtual machine files are quiesced prior to the migration.

Answer: ABC

NEW QUESTION 9
An organization has configured Distributed Power Management (DPM) on a
vSphere 6 cluster. The organization wants to be alerted when an ESXi host has been powered down by DPM.
Which two options represent the type and name of the alarm that would accomplish this? (Choose two.)

• A. DrsEnteringStandbyModeEvent
• B. DrsEnteredStandbyModeEvent
• C. Event-based
• D. Condition-based

Answer: BC

NEW QUESTION 10
Refer to the Exhibit.

An administrator is configuring an ESXi 6.x host to use multiple NICs to resolve a management network redundancy error. After configuring a second NIC, the server is not able to communicate when the primary connection is taken down. The administrator analyzes the Exhibit shown here.
Based on the exhibit, what is the likely cause of the issue?

• A. vmnic4 is not attached to a vSwitch.
• B. vmnic2 is not connected to a physical switch.
• C. E1000 is the incorrect NIC Driver for this card.
• D. There is a MAC address conflict on the network.

Answer: B

NEW QUESTION 11
How many Link Aggregation Groups (LAGs) can be configured on a vSphere
6.x Distributed Switch?

• A. 64
• B. 96
• C. 128
• D. 256

Answer: A

NEW QUESTION 12
An administrator is attempting to power on a virtual machine, but is unable to do so.
Which two reasons are probable causes of the failure? (Choose two.)

• A. Storage access to the virtual machine swap file has been lost.
• B. One of the virtual machine VMDK files is locked.
• C. Virtual machine is running CentOS 7.0 64-bit.
• D. Virtual machine has Hyper-Threading enabled.

Answer: AB

NEW QUESTION 13
Which three VLAN Tagging modes are available in vSphere 6.x? (Choose three.)

• A. External Switch Tagging
• B. Private VLAN Tagging
• C. Virtual Switch Tagging
• D. VXLAN Tagging
• E. Virtual Guest Tagging

Answer: ACE

NEW QUESTION 14
What information is required as part of an interactive ESXi 6.x installation?

• A. Keyboard layout
• B. IP Address
• C. Root password
• D. DNS information

Answer: A

NEW QUESTION 15
An administrator has configured an alarm to be notified when a virtual machine meets two conditions:
✑ high virtual CPU
✑ high active memory consumption
The alarm is malfunctioning and triggering when either condition is met instead of both.
What can be done to correct the issue?

• A. Edit the alarm and select Trigger if ALL of the following conditions are satisfied.
• B. Edit the alarm and select Trigger if ANY of the following conditions are satisfied.
• C. Create two separate alarms, one for CPU and one for memory.
• D. Delete the existing alarm and create a new event based alarm.

Answer: A

NEW QUESTION 16

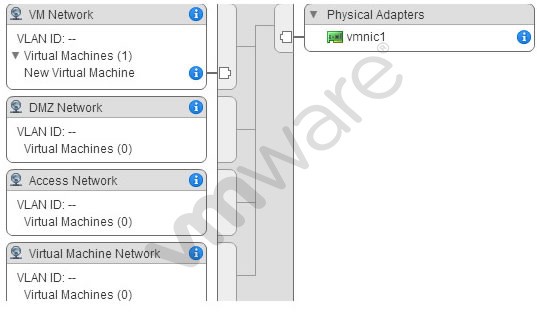

Refer to the Exhibit.

A vSphere 6.x Standard Switch is configured with 4 virtual machine portgroups, as shown in the exhibit.
Which portgroup would be utilized by default when creating a new virtual machine?

• A. Access Network
• B. DMZ Network
• C. VM Network
• D. Virtual Machine Network

Answer: A

NEW QUESTION 17
An administrator has an application that requires connection directly to PCI devices through a virtual machine.
What is a limitation of this configuration?

• A. Devices must be reserved for PCI passthrough on at least one host on which the virtual machine will run.
• B. Snapshots are not supported with DirectPath I/O passthrough devices.
• C. A maximum of 18 PCI vSphere DirectPath devices can be added to a virtual machine.
• D. Only one PCI controller can be presented to the virtual machine.

Answer: B

NEW QUESTION 18
Which three configuration settings will be migrated when upgrading a host from ESX 4.x Classic to ESXi 6.x? (Choose three.)

• A. The SSH configuration in /etc/ssh
• B. The host configuration in /etc/vmware/esx.conf
• C. The NFS configuration in /etc/fstab
• D. The services information in /etc/services
• E. The licensing information in /etc/licenses/license.conf

Answer: ABC

Explanation: http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2005054
Files Migrated During Migration or Upgrade from ESX/ESXi 4.x to ESXi 5.0
This table provides the list of files migrated during upgrade from ESX/ESXi 4.x to ESXi 5.0: FileNotes
/etc/sfcb/sfcb.cfg
CIM ”indication”conf files
/etc/ntp.conf
/etc/ntp.drift
/etc/ntp.keys
/etc/syslog.confMigrated for ESXi, not migrated for ESX.
/etc/security/access.confNeeded for PAM configurations.
/etc/security/login.mapNo comment.
/etc/sysconfig/networkService Console NICs areconverted to VMkernel NICs.
/etc/sysconfig/keyboardAny entries not supported will default to English.
***/etc/sshOpenSSH is now included in ESXi 6.x
/etc/nsswitch.confUsed generically for various configurations, most helpful for Active Directory authentication.
/etc/krb.confNeeded for Likewise to have Active Directory support.
/etc/krb.realmsNeeded for Likewise to have Active Directory support.
/etc/krb5.confNeeded for Likewise to have Active Directory support.
/etc/krb5.aclNeeded for Likewise to have Active Directory support.
/etc/krb5.keytabNeeded for Likewise to have Active Directory support.
/etc/krb5.logNeeded for Likewise to have Active Directory support.
/etc/krb5.mkeyNeeded for Likewise to have Active Directory support.
/etc/pam.d/* (Partial)
Needed for authentication and authorization.
Note: Custom edits made to settings in /etc/pam.d/system-auth in ESX 4.x are reset to the default values by the upgrade to ESXi 6.x To maintain the custom values, reset them manually after the upgrade.
/etc/snmp/snmpd.confMigrated to /etc/vmware/snmp.xml.
etc/motdA note is appended saying the system was upgraded to ESX 5.x.
/etc/likewise/*Used for Likewise configurations.
/etc/vmware/vmkiscsid/*
***/etc/vmware/esx.conf
/etc/vmware/hostd/*
/etc/vmware/vmauth/authentication.confUsed for Likewise configurations
/etc/vmware/vmauth/provider.xmlUsed for Likewise configurations
/etc/hosts
/etc/resolv.conf
***/etc/fstab (Partial)Only NFS entries will be migrated to ESXi.
/etc/passwd (Partial)Only the root user password will be saved, if possible.
/etc/shadowOnly the root user password will be saved, if possible

NEW QUESTION 19
An administrator is unable to create the first group in a new vRealize Operations environment.
What is the likely cause of the problem?

• A. There are no group types defined.
• B. The group is not defined in SSO.
• C. There are more than 32 group types defined.
• D. The description for the group is not provided.

Answer: A

NEW QUESTION 20
What is true about resource pools created on a Distributed Resource Scheduler (DRS)
cluster?

• A. A root resource pool is created with the specified values.
• B. A root resource pool is automatically created using the aggregate total of the ESXi host resources in the cluster.
• C. A root resource pool is automatically created using the aggregate total of all resources in the datacenter.
• D. A root resource pool is not needed when creating resource pools on a DRS cluster.

Answer: B
