NEW QUESTION 1

You fail to establish a Site-to-Site VPN connection between your company's main office and an Azure virtual network.
You need to troubleshoot what prevents you from establishing the IPsec tunnel. Which diagnostic log should you review?

• A. IKEDiagnosticLog
• B. GatewayDiagnosticLog
• C. TunnelDiagnosticLog
• D. RouteDiagnosticLog

Answer: A

Explanation:
Reference:
https://docs.microsoft.com/en-us/azure/vpn-gateway/troubleshoot-vpn-with-azure-diagnostics IKEDiagnosticLog = The IKEDiagnosticLog table offers verbose debug logging for IKE/IPsec. This is very
useful to review when troubleshooting disconnections, or failure to connect VPN scenarios.
GatewayDiagnosticLog = Configuration changes are audited in the GatewayDiagnosticLog table. TunnelDiagnosticLog = The TunnelDiagnosticLog table is very useful to inspect the historical connectivity
statuses of the tunnel.
RouteDiagnosticLog = The RouteDiagnosticLog table traces the activity for statically modified routes or routes received via BGP.
P2SDiagnosticLog = The last available table for VPN diagnostics is P2SDiagnosticLog. This table traces the activity for Point to Site.
https://docs.microsoft.com/en-us/azure/vpn-gateway/troubleshoot-vpn-with-azure-diagnostics

NEW QUESTION 2

You have an Azure virtual network that contains a subnet named Subnet1. Subnet1 is associated to a network security group (NSG) named NSG1. NSG1 blocks all outbound traffic that is not allowed explicitly.
Subnet1 contains virtual machines that must communicate with the Azure Cosmos DB service.
You need to create an outbound security rule in NSG1 to enable the virtual machines to connect to Azure Cosmos DB.
What should you include in the solution?

• A. a service tag
• B. a private endpoint
• C. a subnet delegation
• D. an application security group

Answer: A

Explanation:
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/service-tags-overview

NEW QUESTION 3

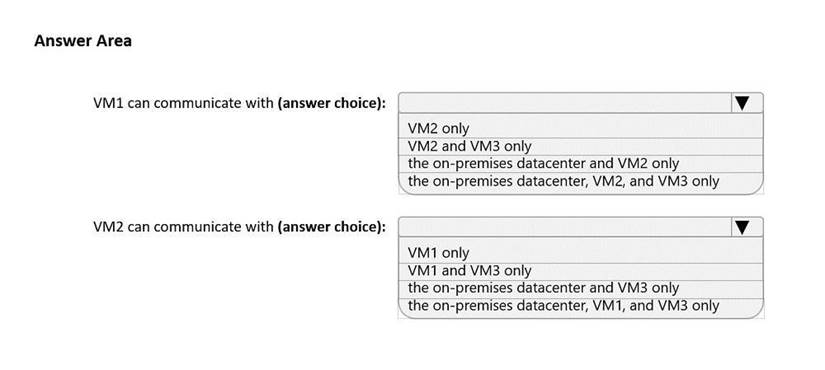

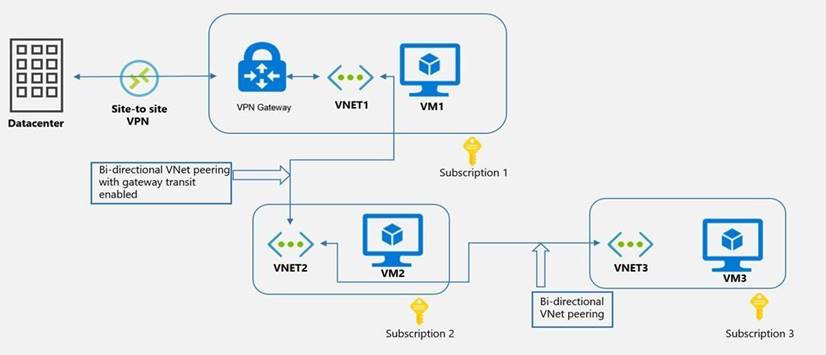

You have an Azure environment shown in the following exhibit.

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 4

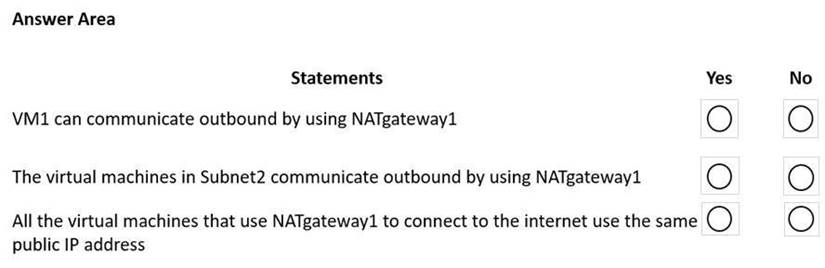

You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2. You have the NAT gateway shown in the NATgateway1 exhibit.

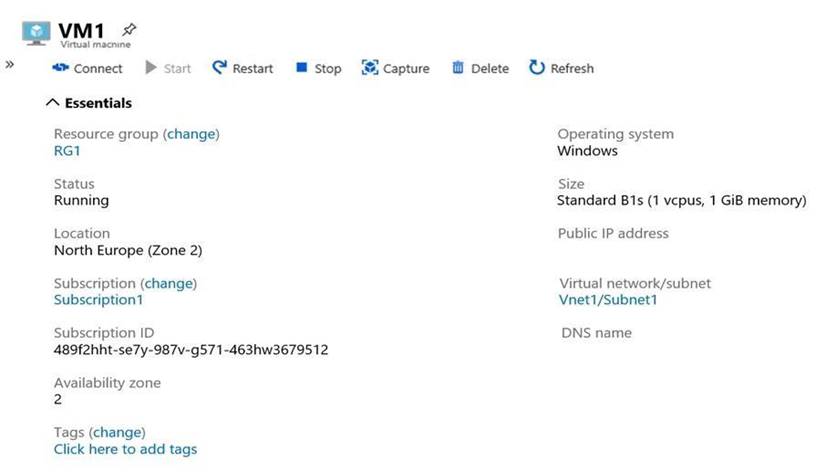

You have the virtual machine shown in the VM1 exhibit.

Subnet1 is configured as shown in the Subnet1 exhibit.

For each of the following statements, select Yes of the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 5

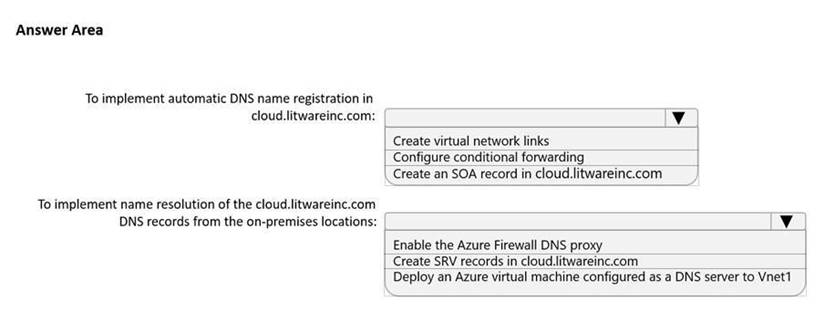

You need to implement name resolution for the cloud.liwareinc.com. The solution must meet the networking requirements.
What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 6

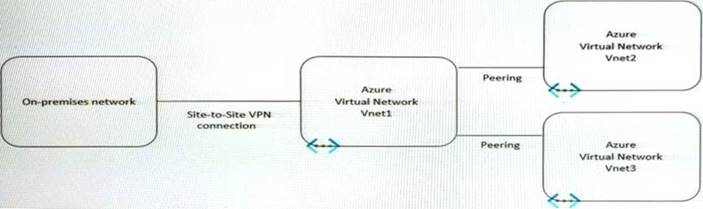

You have the hybrid network shown in the Network Diagram exhibit.

You have a peering connection between Vnet1 and Vnet2 as shown in the Peering-Vnet1-Vnet2 exhibit.

You have a peering connection between Vnet1 and Vnet3 as shown in the Peering -Vnet1-Vnet3 exhibit.

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 7

You configure a route table named RT1 that has the routes shown in the following table.

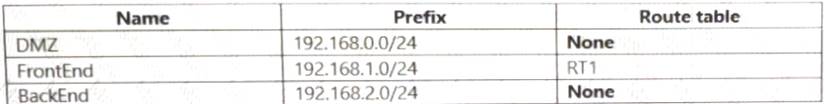

You have an Azure virtual network named Vnet1 that has the subnets shown in the following table.

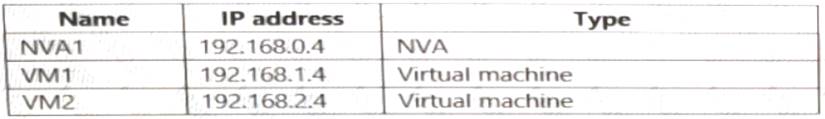

You have the resources shown in the following table.

Vnet1 connects to an ExpressRoute circuit.
The on-premises router advertises the following routes:
* 0.0.0.0/0
* 10.0.0.0/16
For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 8

You have an Azure subscription that contains the route tables and routes shown in the following table.

The subscription contains the subnets shown in the following table.

The subscription contains the virtual machines shown in the following table.

There is a Site-to-Site VPN connection to each local network gateway.
For each of the following statements, select Yes of the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 9

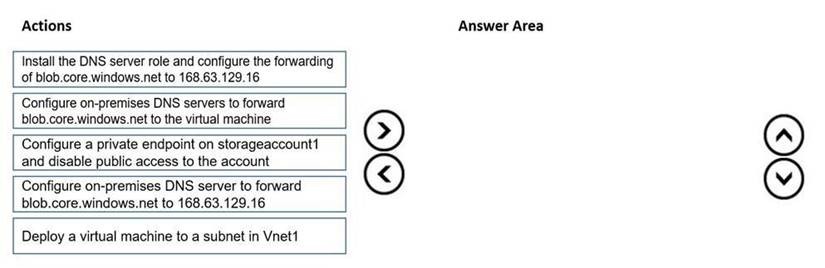

You have an Azure virtual network named Vnet1 that connects to an on-premises network. You have an Azure Storage account named storageaccount1 that contains blob storage.
You need to configure a private endpoint for the blob storage. The solution must meet the following requirements:
Ensure that all on-premises users can access storageaccount1 through the private endpoint.
Prevent access to storageaccount1 from being interrupted.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 10

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have two Azure virtual networks named Vnet1 and Vnet2.
You have a Windows 10 device named Client1 that connects to Vnet1 by using a Point-to-Site (P2S) IKEv2 VPN.
You implement virtual network peering between Vnet1 and Vnet2. Vnet1 allows gateway transit. Vnet2 can use the remote gateway.
You discover that Client1 cannot communicate with Vnet2. You need to ensure that Client1 can communicate with Vnet2. Solution: You enable BGP on the gateway of Vnet1.
Does this meet the goal?

• A. Yes
• B. No

Answer: B

Explanation:
The VPN client must be downloaded again if any changes are made to VNet peering or the network topology. Reference:
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-point-to-site-routing

NEW QUESTION 11

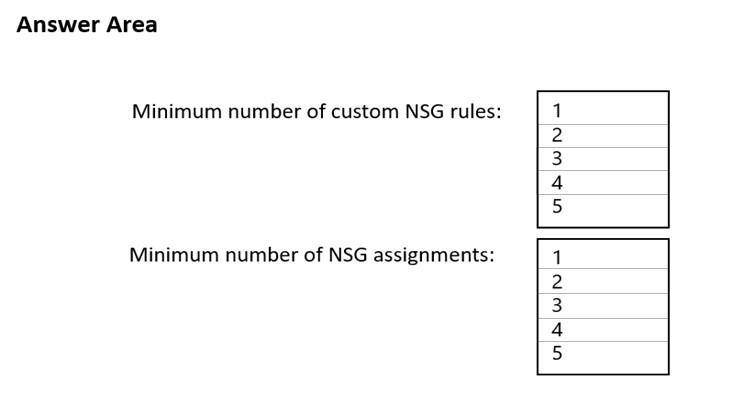

You need to restrict traffic from VMScaleSet1 to VMScaleSet2. The solution must meet the virtual networking requirements.
What is the minimum number of custom NSG rules and NSG assignments required? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 12

You have the network security groups (NSGs) shown in the following table.

In NSG1, you create inbound rules as shown in the following table.

You have the Azure virtual machines shown in the following table.

NSG2 has only the default rules configured.
For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 13

You have an Azure virtual network that contains two subnets named Subnet1 and Subnet2. Subnet1 contains a virtual machine named VM1. Subnet2 contains a virtual machine named VM2.
You have two network security groups (NSGs) named NSG1 and NSG2. NSG1 has 100 inbound security rules and is associated to VM1. NSG2 has 200 inbound security rules and is associated to Subnet1.
VM2 cannot connect to VM1.
You suspect that an NSG rule blocks connectivity.
You need to identify which rule blocks the connection. The issue must be resolved as quickly as possible. Which Azure Network Watcher feature should you use?

• A. Effective security rules
• B. Connection troubleshoot
• C. NSG diagnostic
• D. NSG flow logs

Answer: C

NEW QUESTION 14

You have an Azure Front Door instance that provides access to a web app. The web app uses a hostname of www.contoso.com.
You have the routing rules shown in the following table.

Which rule will apply to each incoming request? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 15

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled. You configure the application gateway to direct traffic to the URL of the application gateway.

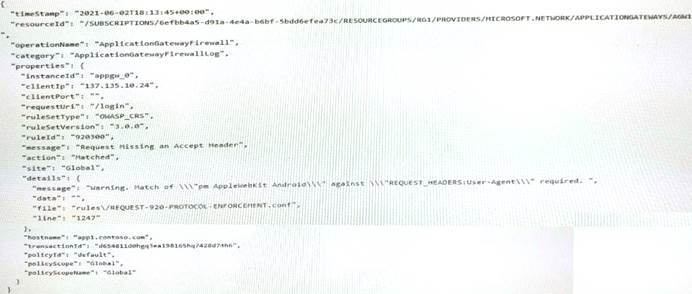

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.

You need to ensure that the URL is accessible through the application gateway.
Solution: You create a WAF policy exclusion request headers that contain 137.135.10.24. Does this meet the goat?

• A. Yes
• B. No

Answer: B

NEW QUESTION 16

You have the Azure environment shown In the Azure Environment exhibit. (Click the Azure Environment tab.) The settings for each subnet are shown in the following table.

The Firewalls and virtual networks settings for storage1 are configured as shown in the Storage1 exhibit. (Click the Storage1 tab.) For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 17

You have an Azure Virtual Desktop deployment that has 500 session hosts. All outbound traffic to the internet uses a NAT gateway.
During peak business hours, some users report that they cannot access internet resources. In Azure Monitor, you discover many failed SNAT connections.
You need to increase the available SNAT connections. What should you do?

• A. Add a public IP address.
• B. Bind the NAT gateway to another subnet.
• C. Deploy Azure Standard Load Balancer that has outbound rules.

Answer: A

Explanation:
Reference:
https://docs.microsoft.com/en-us/azure/virtual-network/nat-gateway/nat-gateway-resource
