NEW QUESTION 1

The key difference between the "Degraded" status and the "Critical" status is:

• A. With degraded, only one alarm has been triggered, whereas with critical, two or more alarms were triggered
• B. With degraded, the Steelhead appliance is still optimizing traffic, whereas with critical the Steelhead may or may not be optimizing
• C. With degraded, there is no optimization due to a software problem, whereas with critical there is no optimization due to a hardware problem
• D. With both degraded and critical, optimization functions as normal however administrator attention is required

Answer: B

NEW QUESTION 2

In a network where QoS classification and enforcement is being performed by the customer’s carrier-managed WAN routers and QoS traffic classification is based on IP address and/or destination TCP port, what WAN visibility mode should be employed for TCP sessions optimized by the Steelhead appliances to maintain interoperability with the existing QoS strategy?

• A. Full Transparency
• B. Correct Addressing
• C. Port Transparency
• D. Port Mapping

Answer: A

NEW QUESTION 3

What does the Data Streamlining module in RiOS do?

• A. Eliminates redundant bytes from transfers
• B. Prioritizes application traffic
• C. Reduces transport protocol inefficiencies
• D. All of the above
• E. None of the above

Answer: A

NEW QUESTION 4

Manually moving an entry from the SSL grey list to the white list on a SteelHead enables trust between which hosts?

• A. Client-side SteelHead and server-side SteelHead
• B. Client PC and server-side SteelHead
• C. Client-side SteelHead and server
• D. Server-side SteelHead and server

Answer: A

Explanation:
The Riverbed SSL solution optimizes data transfers that are encrypted using SSL, provided that SteelHeads are deployed locally to both the client-side and server-side of the network.
Note: Secure Peering Using the Self-Signed Peer White, Gray, and Black Lists
You can use peering lists to configure peer certificates on SteelHeads running RiOS 5.0 or later. When SSL optimization is enabled, and an optimizable SSL connection is attempted across the SteelHeads, the remote peer is detected and its peering certificate is automatically populated into the self-signed peer gray list. The connection remains unoptimized because the remote peer is listed in the self-signed peer gray list.
You can examine the peer certificate for authenticity and move any peer from the gray list to either the white list or the black list. If you trust the remote peer, move it into the self-signed peer white list to begin optimizing the SSL connection. If you do not trust the remote peer, move it into the self-signed peer black list to prevent the SSL connection from being optimized.
References: https://support.riverbed.com/bin/support/static/lrj6rq1evg0fnm7pekuq3j2md1/html/vte4p5uj2dkg9k1ukjv82835

NEW QUESTION 5

Once a Steelhead Mobile client connects to Steelhead Mobile Controller (SMC), it retrieves what from the SMC? (Select 2)

• A. Secure vault key
• B. License
• C. The Central Management Console (CMC) tree
• D. The Steelhead domain catalog descriptor database (DCDD)
• E. Acceleration Policy

Answer: BE

NEW QUESTION 6

What effect will enable SDR-M (Scalable Data Referencing – Memory) have on a Steelhead appliance in production?

• A. An increase in overall LAN throughput
• B. SDR would occur in RAM until flushed to disk
• C. An increase in overall WAN throughput
• D. SDR would occur on disk and backed up to RAM for future lookups
• E. SDR must occur over the primary interface directly to RAM

Answer: A

NEW QUESTION 7

A user downloads a Microsoft PowerPoint presentation from a server across the network. The file has been seen before by both Steelhead appliances that are optimizing the link and so the user experiences warm performance. A second user at the same office has a local copy and adds some pictures then uploads the very same file. This file transfer can be considered:

• A. Cold, the data now travels in another direction so the Steelhead appliance needs to relearn the data
• B. Cold, the file has been changed to the file needs to be stored again
• C. Warm, all the data has been seen by the Steelhead appliances before
• D. Warm, the transaction prediction module of the Steelhead appliance can detect the application and accelerate the transfer
• E. Partially warm, the Steelhead appliances only need to learn the new data

Answer: E

NEW QUESTION 8

Which SteelHead optimization feature provides layer 7 acceleration?

• A. MXTCP
• B. SDR
• C. LZ
• D. Optimization blades
• E. HSTCP

Answer: D

Explanation:
Blade optimization is done at layer 7.

NEW QUESTION 9

How does the SteelHead monitor path availability in Path Selection?

• A. Path availability is not monitored until traffic is sent over that pat
• B. Then the SteelHead uses standard TCP timeouts to monitor path integrity.
• C. The SteelHead uses ICMP ping to monitor path availability.
• D. The SteelHead creates an inner channel on each path and keep-alive packets are used to track availability.
• E. UDP keep-alives are periodically sent across each pat
• F. If a SteelHead does not receive two of these within a pre-defined timeout period, the path is declared down.

Answer: B

Explanation:
RiOS 8.5 path selection technology provides the ability to deterministically re-direct select traffic and application flows through alternate WAN routes based on service metrics, such as path availability and priority.
Availability is determined by whether the host at the remote end of a path can be reached via endto-end Internet Control Messaging Protocol (ICMP):
References:
http://www.riverbednews.com/2013/08/path-selection-what-you-need-to-get-started/

NEW QUESTION 10

Datastore synchronization can be used in which of the following deployments?

• A. Serial in-path
• B. Logical in-path
• C. Server-side out-of-path
• D. Parallel in-path
• E. All of the above

Answer: E

NEW QUESTION 11

What is the packaging distribution format for the Virtual Steelhead appliance?

• A. Open Virtual Appliance
• B. Open Virtual Image
• C. Open Virtual Release
• D. Open Virtual Source
• E. Open Virtual Package

Answer: A

NEW QUESTION 12

A SteelHead is joined to a Windows domain using the Windows Active Directory administrator password. In order to use transparent authentication to optimize signed SMB2 traffic, which of the following is true?

• A. SMB2 signing optimizations must be enabled on the server -side SteelHead only.
• B. SMB2 signing optimizations must be enabled on both the client-side and server-side SteelHeads.
• C. A delegation or replication account must be configured on client-side SteelHead.
• D. A delegation or replication account must be configured on both the client-side and server-side SteelHeads.

Answer: A

Explanation:
Configure the Steelhead appliance to optimize Secure Windows traffic Configuration steps for Signed SMB and Signed SMB2
3.2.1 On the server-side Steelhead navigate to Configure > Optimization > CIFS (SMB1).
3.2.2 Under the SMB Signing section, check the ‘Enable SMB Signing’ checkbox
3.2.3 Ensure the ‘NTLM Transparent Mode” option is selected

References:
Optimization in a Secure Windows Environment, White Paper , pages 35-36 https://support.riverbed.com/download.htm?filename=public/doc/technotes/Windows_security_guide.pdf

NEW QUESTION 13

When enabling the IPSec feature on the Steelhead appliances:

• A. Both optimized and pass-through traffic are encrypted
• B. Only optimized traffic is encrypted
• C. IPSec encrypted traffic is optimized
• D. Only control traffic is encrypted, not user traffic

Answer: B

NEW QUESTION 14

The SteelHead's HTTP optimization blade supports a number of other configurable features as well. Examples include: (choose two)

• A. Video stream splitting
• B. Proxy File Service
• C. Citrix optimization
• D. SharePoint (WebDAV and FPSE)

Answer: AD

Explanation:

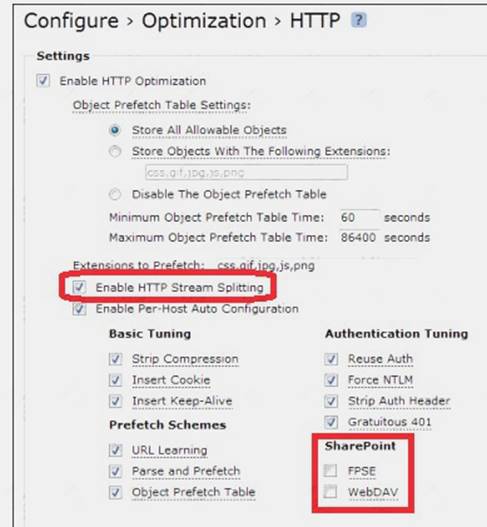

To configure an HTTP optimization scheme for a particular hostname or server subnet Choose Configure > Optimization > HTTP to display the HTTP page

Enabling the Enable HTTP Stream Splitting feature on the client-side Steelhead appliance to split Silverlight smooth streaming, Adobe Flash HTTP dynamic streams, and Apple HTTP Live Streaming (HLS).
This feature includes support for Microsoft Silverlight video and Silverlight extensions support on Information Internet Server (IIS) version 7.5 installed on Windows Server 2008 R2.
References:
Steelhead Appliance Management Console User’s Guide, Version 8.5.1, November 2013, pages 148, 150
https://support.riverbed.com/download.htm?product_name=steelhead&did=b0k7v640ooladbjgbjpt57rcb9

NEW QUESTION 15

Which version of WCCP supports redirection of all TCP traffic?

• A. Version 1
• B. Version 2
• C. Version 9
• D. Version 12.2.18

Answer: B

NEW QUESTION 16

Which of the following platforms provide support for HighSpeed TCP?

• A. All Steelhead modules designed for large offices
• B. All models except the desktop units
• C. All appliance models
• D. Only the mid-size office
• E. Only really big appliances 80lbs or greater

Answer: C

NEW QUESTION 17

What is the default QoS classification mode?

• A. Flat
• B. Hierarchical
• C. WRED
• D. LLQ
• E. FEC

Answer: A

NEW QUESTION 18

Which HTTP optimization feature uses an algorithm to determine which objects are likely to be requested for a specific web page, and prefetches them so available when the client makes the request?

• A. Gratuitous 401 Messages
• B. URL Learning
• C. Object Prefetch Table
• D. Strip Compression
• E. Parse-and-Prefetch

Answer: E

Explanation:
References:
https://support.riverbed.com/bin/support/download?did=333

NEW QUESTION 19

Which of the following is a valid type of in-path rule on the Steelhead appliance? (Select 3)

• A. Pass Through
• B. Dynamic Detection
• C. Auto Discover
• D. Fixed-Target
• E. Real-Time

Answer: ACD

NEW QUESTION 20

Rules that dictate the types of TCP traffic that a Steelhead Mobile client should optimize are configured in the:

• A. Acceleration policy
• B. Authorization policy
• C. Peering rules
• D. Fixed target policy

Answer: A

NEW QUESTION 21

A customer is marking QoS between the Steelhead appliances based on the application (port number) being used. What is the recommended WAN visibility mode?

• A. Correct Addressing
• B. Port Transparency
• C. IPSec tunnel mode
• D. SSL mode

Answer: B

NEW QUESTION 22

A user uploads a Microsoft Word document to a server across the network using the file transfer protocol (FTP). The file has been seen before by the Steelhead appliances that are optimizing the link and so the user experiences warm performance. A second user at the same location downloads the file from the same server using the CIFS protocol. This file transfer can be considered:

• A. Cold, the data now travels in another direction so the Steelhead appliances need to relearn the data
• B. Cold, the application protocol is now different so the Steelhead appliances need to relearn the data
• C. Warm, the data has been seen by the Steelhead appliances before making the application protocol irrelevant
• D. Warm, only because the transfer uses CIFS
• E. Partially warm, the Steelhead appliances only need to learn the new data

Answer: C

NEW QUESTION 23

What is NOT supported in Virtual in-path deployments?

• A. Server-side initiated connections
• B. Simplified Routing
• C. Path Selection
• D. SteelHead Mobile optimization
• E. HSRP or VRRP gateways

Answer: A

NEW QUESTION 24

Which of the following is a benefit of the Riverbed Services Platform (RSP) on the Steelhead appliance? (Select 2)

• A. Optimizes VoIP flowing through proxy servers
• B. Removes the need for specific servers in the branch offices
• C. Allows for continued operations of specific functionality in the event of a WAN failure
• D. Provides parallel forwarding domains for asymmetrical routing

Answer: BC

NEW QUESTION 25

A Steelhead appliance can synchronize its datastore with a maximum of how many other Steelhead appliances?

• A. 1
• B. 2
• C. 3
• D. 4

Answer: A
